| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 99 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type:: | Tile Forming Machine, Tr4 Tr5 Corrugated Metal Roofing Sheet Making Machine | Upper Speed:: | 4m |
|---|---|---|---|
| Production Capacity:: | 8-15m/minute | Rolling Thinckness:: | 0.3-0.8mm |
| Roller Material:: | 45# Forged Steel With Hard Chrom | Voltage:: | 380V 50Hz 3phases |
| Warranty:: | 24 Months | Weight: | 4600KG |
| Feeding Width:: | 1250mm | Dimension(L*W*H):: | 7500mm*1.55mm*1.3mm |
| Highlight: | 840 Glazed Roofing Sheet Roll Forming Machine,380V Tile Making Machine,840 Glazed Tile Making Machine |
||

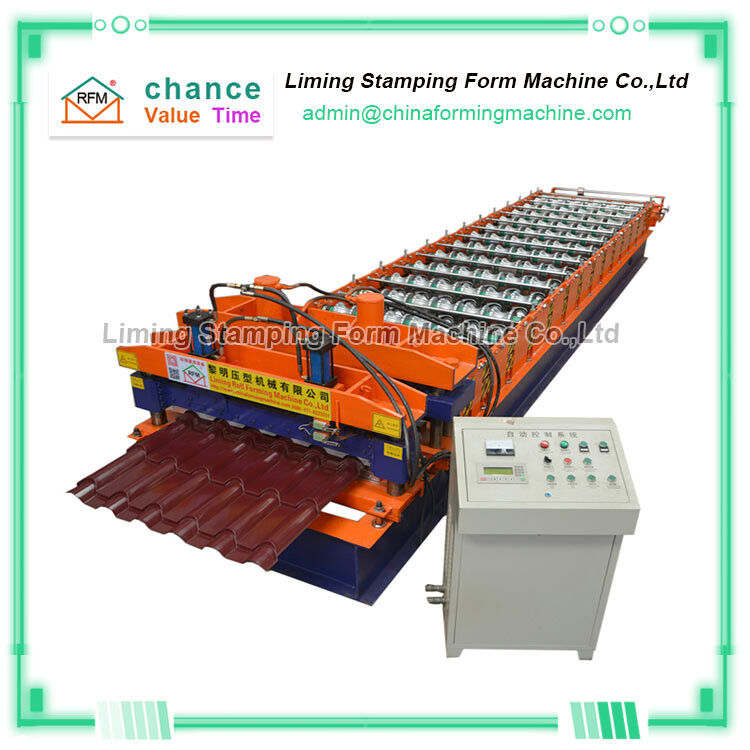

840 Glazed Roof Wall Sheet Tile Roll Forming Making Machine
The waterproofness of "840 Glazed Roof wall sheet Tile Roll Forming making Machine ": seamless connection of slopes, interference combination of the entire tile, complete sealing and fixing components and waterproofness that other building roof materials do not have.
The "840 Glazed Roof wall sheet Tile Roll Forming making Machine " has a short construction time and reduces costs: it meets the site requirements of the construction unit, reduces the construction intensity, improves the construction efficiency, and the construction is not affected by the season.
The weight of the color steel plate roof produced by the "840 Glazed Roof wall sheet Tile Roll Forming making Machine " is only 5-9 kg per square meter, which is only one-tenth of the traditional sintered brick.
The firm connection method of "840 Glazed Roof wall sheet Tile Roll Forming making Machine " can fully bear the load of the roof. The unique air interlayer improves the thermal insulation performance;
The waterproof groove of the color steel roof produced by the "840 Glazed Roof wall sheet Tile Roll Forming making Machine "has good waterproof performance, which is very suitable for light steel structure, concrete structure, wooden structure and other inclined roof buildings or flat slopes in old city reconstruction. engineering.
Main parameters of 840 Glazed Roof Wall Sheet Tile Roll Forming Making Machine
| 840 Glazed Roof wall sheet Tile Roll Forming making Machine | ||
| 1.Raw material | Thickness | 0.25-0.75mm |
| 2.Decoiler | Operation | automatic |
| Weight apacity | 3.5-6t | |
| 3.Main body | Roller station | 13-18 rows |
| Diameter of shaft | 70-80mm | |
| Material of rollers | 45# steel | |
| Material of shaft | 45# steel | |
| Frame | 16-18mm | |
| Chain | 1.32-1.97inch | |
| 4.Cutter | Operate | auto |
| Blade Material | cr12mov | |
| 5. Power | Voltage | customized |
| Power | 5.5-7.5kw | |
| 6.Control system | Electric Box | customized/Delta |
| Language | english chinese/customzied | |
| 7.Forming Speed | Forming Speed | 3-4m/min |
