| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 66 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 45set/Year |
| Type:: | Tile Forming Machine | Production Capacity:: | 60m/min |
|---|---|---|---|
| Tile Type:: | Colored Glaze Steel | Dimension(L*W*H):: | 9.1*1.65*1.5m |
| Rolling Thinckness:: | 0.4-0.7mm | Weight:: | 6.5T |
| Rows Of Rollers:: | 15rows & 16 Rows | Core Components:: | Bearing, Pump, PLC |
| Warranty:: | 2 Years | Raw Material Width:: | 1250mm |
| Highlight: | glazed roof tiles making machine,0.7mm roof tiles making machine,plc metal roof tile making machine |
||

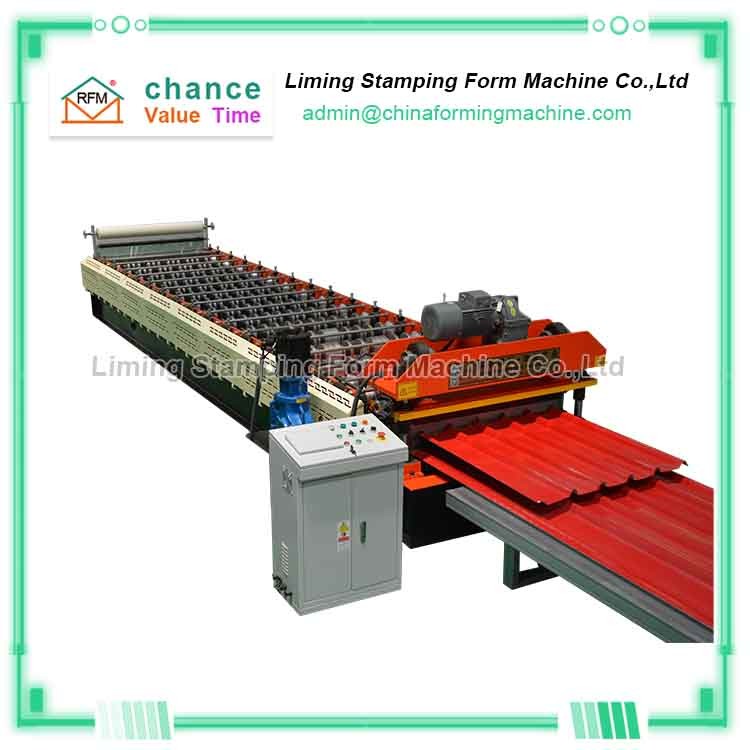

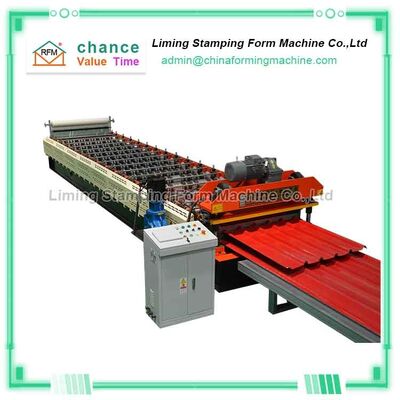

60/min high output metal roof panel forming machine
The price of metal roof panel forming machine is the most popular type of roll forming machine. The colored steel roof panels made of it can be used in various industrial plants, buildings, factories, villages, warehouses, supermarkets, hotels, exhibition halls, shopping centers, etc. The finished panels are usually used for roofs and wall panels. . It has an exquisite design and is widely used all over the world.
The metal roof panel forming machine we produce adopts export standard technical solutions to make the metal roof panel forming machine strong and stable enough to ensure that the products produced are accurate in size, and at the same time have sufficient load-bearing capacity and anti-corrosion ability.
The metal roof panel forming machine can run at a normal speed of 30m/min, and can also be adjusted to a maximum speed of 60m/min to meet your needs for production efficiency.
In order to facilitate your control of the metal roof panel forming machine, we use a PLC with touch screen operation to ensure convenient control of the equipment.
At the transmission part of the metal roof panel forming machine, we are also equipped with high-quality protective covers to prevent mechanical accidents and achieve the purpose of safe production.
Main parameters of 60/min high output metal roof panel forming machine
| Item | Specification |
| Raw Material | Type |
| Thickness(mm) | 0.3-0.7 |
| Yield strength(mpa) | 235 |
| Roller material | 45# steel , coated with Chrome |
| Shaft for rollers | Solid shaft with 72mm,processed with cylindrical grinder |
| Forming speed(m/min) | About 60 |
| Speed adjusting mode | Mitsubishi frequency transformer |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Nemicon Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 7.5KW |
| Total power(kw) | 9.7KW |
