| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Slitting 6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 60 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300set/Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | Slitting Machine In Other Packaging Machinery |
|---|---|---|---|
| Name: | Uncoiling And Slitting And Recoiling Line | No. Of Slitting Lines:: | 1 - 50 |
| Weight:: | 50T | Voltage:: | 380V |
| Cutting Width (mm):: | 100 - 300mm | Coil Weight (T):: | 3/ 5/ 10 Tons |
| Cutting Speed(m/min):: | 8 - 20 M/min | Leveling Precision(±mm/m):: | 1 ±mm/m |
| Highlight: | adjustable automatic steel coil slitting line,adjustable steel coil slitting line automatic,300mm automatic steel coil slitting line |
||

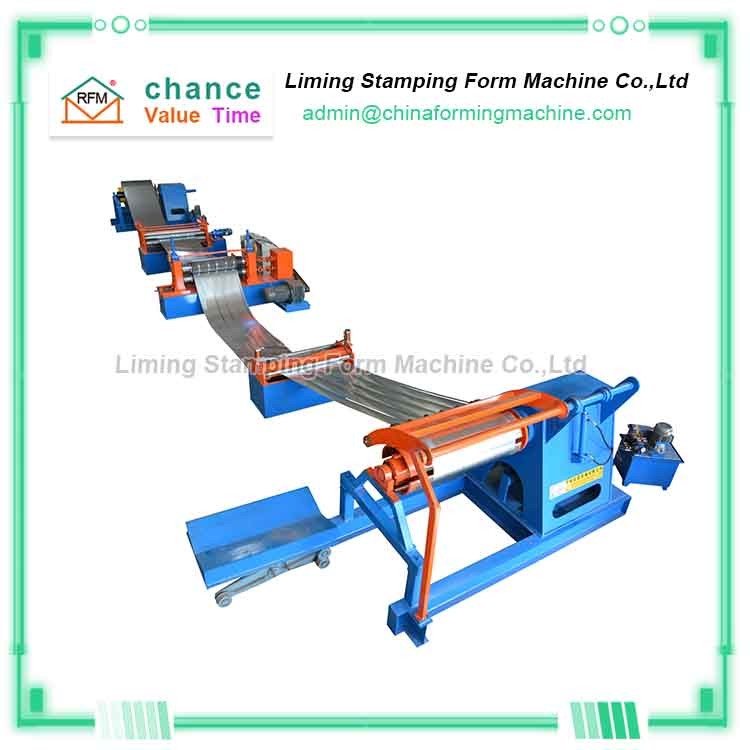

The slitting line production line is composed of a 7T unwinding device, a 12-axis leveling device, an adjustable slitting device, two sets of edge yarn collectors, a pressing device, and a rocker rewinding device. The entire production line is controlled by a PLC programming control system , Only one person can complete the entire production process, which can help you save labor costs and improve production efficiency.
The adjustable slitting device of the slitting line production line is equipped with multiple sets of cutting blades and multiple sets of spacer sleeves to ensure that you will not have the problem of inaccurate size, insufficient blades and spacer sleeves when you are producing small-size raw materials.
The shear blades used in the slitting line production line are manufactured by a variety of production processes such as high-precision lathe rough turning, quenching, fine turning, etc., to ensure the hardness and toughness of the blade, which can help you produce products with different thicknesses
Technical Parameters of Simple operation, adjustable slitting line
| Project | Parameter | |
| Material | HR, CR, GI | |
| Thickness | 0.6mm--4.0 mm | |
| Width | 400-1600mm | |
| OD | φ800-2000mm | |
| Specification | ID | Φ508-610mm |
| Weight | 25 T | |
| Yield strength 350MPa | ||
| Performance | Tensile strength 300MPa | |
| Width tolerance: | 0.10mm | |
| Slitting accuracy | Longitudinal tolerance | ≤0.8mm/m |
| Burr | ≤0.1mm | |
| Way of cutting | Feed cutting | |
| 0.6mm--1.5mm 25strips | ||
| 1mm--2mm 20 strips | ||
| Slitting strips | 3.1mm--4mm 8 strips | |
| Strip width | Min 30mm | |
| Recoiler diameter | Φ508mm/Φ610mm | |
| Line Speed | 80m/min | |
| Operation height | 1000mm | |
| Total line power consumption | 290kw | |
