| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 65 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 45set/Year |
| Type:: | Tile Forming Machine | Production Capacity:: | 60m/min |
|---|---|---|---|
| Tile Type:: | Colored Glaze Steel | Dimension(L*W*H):: | About 11.2*1.3*1.1 M |
| Voltage:: | 380V, 50HZ, 3 Phase | Roller Material:: | 45#steel Chrome Plated |
| Rows Of Rollers:: | 15rows & 16 Rows | Frame:: | 350H Steel Welding |
| Feeding Rack Load:: | 4.5T | Raw Material Width:: | 1250mm |
| Highlight: | roof slab glazed tile machine,high tech glazed tile machine,plc glazed tile machine |
||

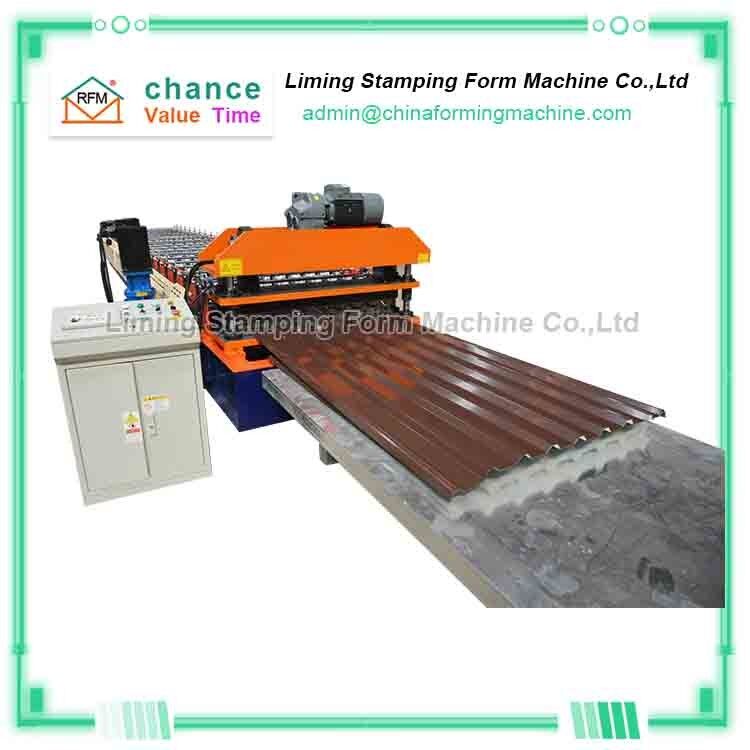

The high-speed roof slab forming machine is a mechanical equipment that uses modern electromechanical control technology to achieve programmed and automated production in the process of producing pressed tiles.
The high-speed roof panel forming machine is composed of unwinding, forming, and post-forming cutting. The colored panels produced are smooth and beautiful, with uniform paint patterns, high strength, and durability. They are widely used in industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, and exhibition halls. Theaters and other rooms and walls.
The high-speed roof slab forming machine needs to use the text screen to set the parameters before production, and the high-speed roof slab forming machine can automatically produce it, which can help you save labor costs.
The high-speed roof slab forming machine can be installed and used alone, or it can be equipped with a roof slab production line composed of automatic loading racks and unloading robots, extruders, tile cutters, etc., which can save you a lot of manpower and production costs.
Main parameters of High-tech 60m/min high-speed roof slab forming machine
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range | 914, 1000, 1220 or 1250 mm. |
| According to your actual drawing. | |
| Electric Power | 380V, 50 Hz, 3 phase |
| or according to your need. | |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet | You can set the length according to your need. |
| It is controlled by PLC | |
| length accuracy: ±1mm. |
