| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 67 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 45set/Year |
| Type:: | Tile Forming Machine | Production Capacity:: | 60m/min |
|---|---|---|---|
| Tile Type:: | Colored Glaze Steel | Dimension(L*W*H):: | 7.1*1.2*1.3m |
| Rolling Thinckness:: | 0.3-0.8mm | Weight:: | 6T |
| Core Components:: | Bearing, Pump, PLC | Warranty:: | 2 Years |
| Raw Material Width:: | 1250mm | ||
| Highlight: | 1250mm roofing sheet roll forming machine,0.8mm roofing sheet roll forming machine,1250mm small roll forming machine |
||

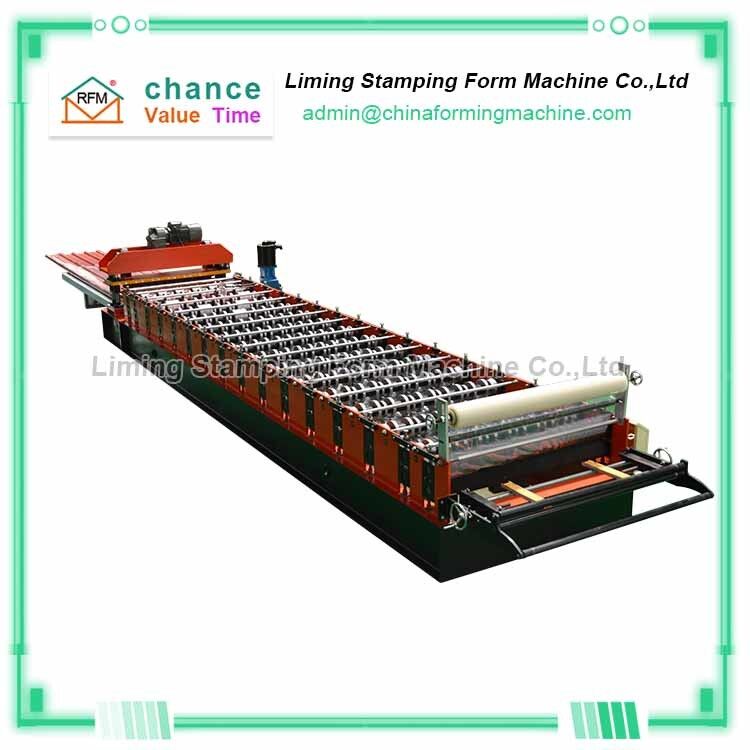

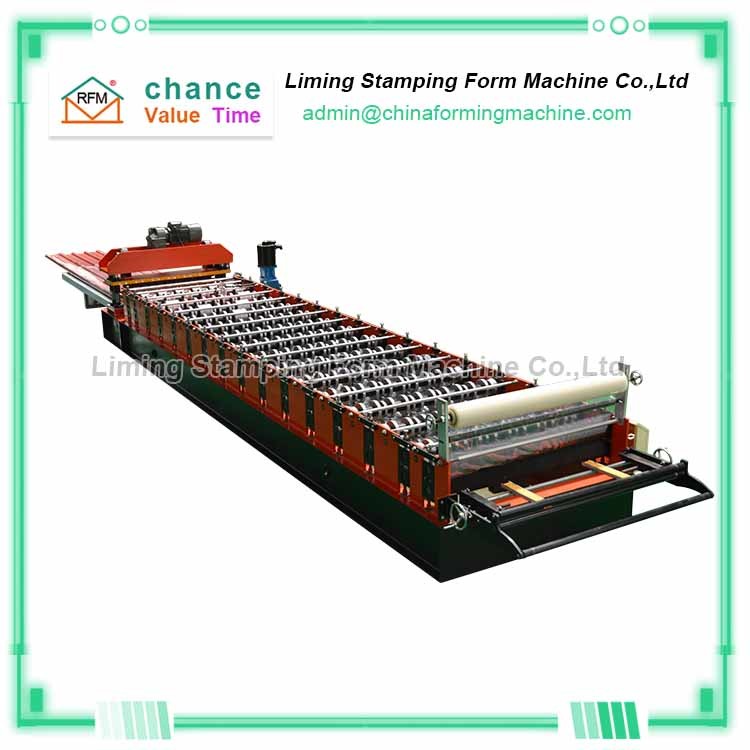

The price of high-speed metal roof panel forming machine is the most popular type of roll forming machine. The colored steel roof panels made of it can be used in various industrial plants, buildings, factories, villages, warehouses, supermarkets, hotels, exhibition halls, shopping centers, etc. The finished panels are usually used for roofs and wall panels. . It has an exquisite design and is widely used all over the world.
The high-speed metal roof panel forming machine we produce adopts export standard technical solutions to make the high-speed metal roof panel forming machine strong and stable enough to ensure that the products produced are accurate in size, while also having sufficient load-bearing capacity and anti-corrosion ability.
The high-speed metal roof panel forming machine can run at a normal speed of 30m/min, and can also be adjusted to a maximum speed of 60m/min to meet your needs for production efficiency.
In order to facilitate your control of the high-speed metal roof panel forming machine, we use a touch-screen PLC to ensure the convenient operation of the equipment.
At the transmission part of the high-speed metal roof panel forming machine, we are also equipped with high-quality protective covers to prevent mechanical accidents and achieve the purpose of safe production.
Main parameters of Roof decoration high-speed cutting metal roof panel forming machine
| Main Motor Power | 3kw |
| Hydraulic Station Power | 3kw |
| Hydraulic Oil Pump | CB-E310 |
| Sprocket | P-25.4 |
| Roller Station | 9 |
| Yield strength | 32MPa |
| Diameter of Principal Axis | 70MM |
| Material of Roller | 45#steel hard chrome plating |
| Processing Speed | 8m/min |
| Installation Dimension (L*W*H) | 6.5m*1.5m*0.8m |
| Total Weight | 3.8T |
| Equipment Parts | roll forming system, hydraulic system, PLC frequency conversion control system, counter and cutting system. |
| Production | according to customers' demand |
