| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 69 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 45set/Year |
| Type:: | Tile Forming Machine | Production Capacity:: | 60m/min |
|---|---|---|---|
| Tile Type:: | Colored Glaze Steel | Dimension(L*W*H):: | 6.5*1.2*1.3m |
| Rolling Thinckness:: | 0.3-0.8mm | Weight:: | 6.5T |
| Core Components:: | Bearing, Pump, PLC | Warranty:: | 1.5 Years |
| Raw Material Width:: | 1250mm | ||
| Highlight: | 1.25m glazed tile roll forming machine,0.3mm glazed tile roll forming machine,glazed tile forming machine |
||

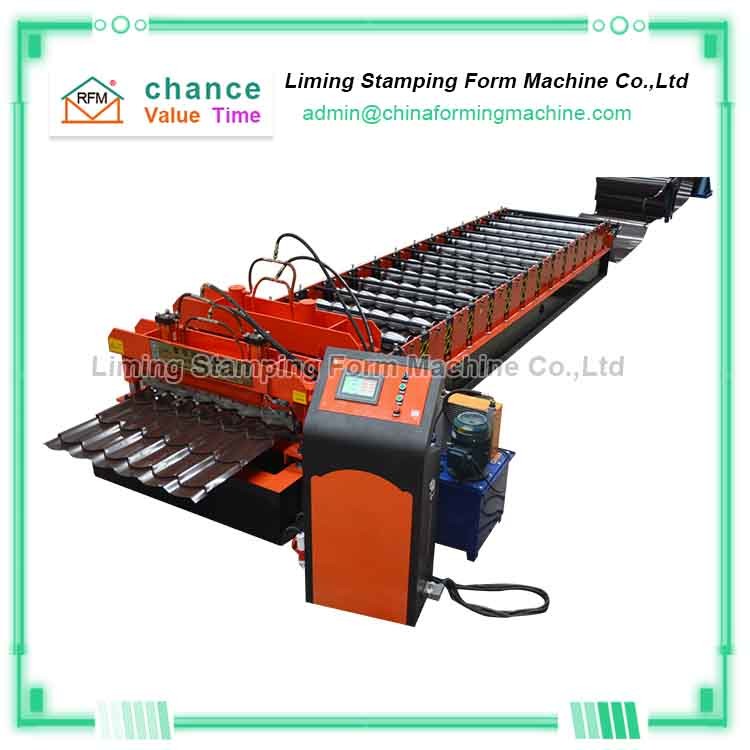

The glazed tile forming machine production line uses galvanized steel plates or color steel plates or aluminum plates of different colors as raw materials. The products produced are used to build the exterior roof panels and wall panels of the house. After installation, the roof or walls are both beautiful and durable. Great praise from the masses, if you need the glazed tiles we produce, we can provide you with a glazed tile forming machine.
The glazed tile forming machine production line has no production length limitation. You can set multiple sets of different data on the computer controller according to the construction requirements. After one-click "confirm", the equipment will automatically produce finished products of different lengths according to the data set by the computer.
The surface of the finished product produced by the glazed tile forming machine production line is smooth, smooth, and free of scratches, which is convenient for construction and installation.
The glazed tile forming machine can also be customized for you according to your layout and configuration requirements. The produced machine fully meets your requirements and has high precision, which is suitable for sales or self-use.
Main parameters of Roof decoration, easy installation, glazed tile forming machine
| Main Motor Power | 3kw |
| Hydraulic Station Power | 3kw |
| Hydraulic Oil Pump | CB-E310 |
| Sprocket | P-25.4 |
| Roller Station | 9 |
| Yield strength | 32MPa |
| Diameter of Principal Axis | 70MM |
| Material of Roller | 45#steel hard chrome plating |
| Processing Speed | 8m/min |
| Installation Dimension (L*W*H) | 6.5m*1.5m*0.8m |
| Total Weight | 3.8T |
| Equipment Parts | roll forming system, hydraulic system, PLC frequency conversion control system, counter and cutting system. |
| Production | according to customers' demand |
