| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-roofing sheet 45 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 45set/Year |
| Type:: | Tile Forming Machine | Production Capacity:: | 30m/min |
|---|---|---|---|
| Tile Type:: | Colored Glaze Steel | Dimension(L*W*H):: | 6*1.2*1.3m |
| Rolling Thinckness:: | 0.3-0.7mm | Weight:: | 7T |
| Core Components:: | Bearing, Pump, PLC | Warranty:: | 2 Years |
| Raw Material Width:: | 1250mm | ||
| Highlight: | 900mm double layer forming machine,SGS double layer forming machine,SGS double layer roll forming machine |
||
1. Using synchronous pressing, 13 rows of shafts are formed, the board surface is flat, and the forming is stable without wrinkles and paint.
2. The fuselage is welded with 250mm H-shaped steel, and the middle plate is welded with 18mm steel plate and the base of the main machine.
3. The shaft is made of 45# steel, the size of the shaft body is φ70mm after processing, and the mold wheel is made of GR12
4. The transmission adopts 6-point chain, chain transmission (internal hanging type), 4#3kw planetary cycloid reducer, stable movement and no noise.
5. The middle plate connection adopts cast steel pull plate, the machine does not change shape when it is working, and it is not cheap.
6. The transmission bearing adopts 210 high-speed double-sealed bearings with long service life and maintenance-free.
7. The shearing hydraulic system adopts CDF-10 gear pump, motor power is 5.5kw, noise-free operation is stable, long service life, and the shearing adopts middle plate welding to increase the weight.
8. The computer control system adopts high-intelligence industrial electronic programmer PLC, inverter control system, simple operation, accurate precision and stable performance.

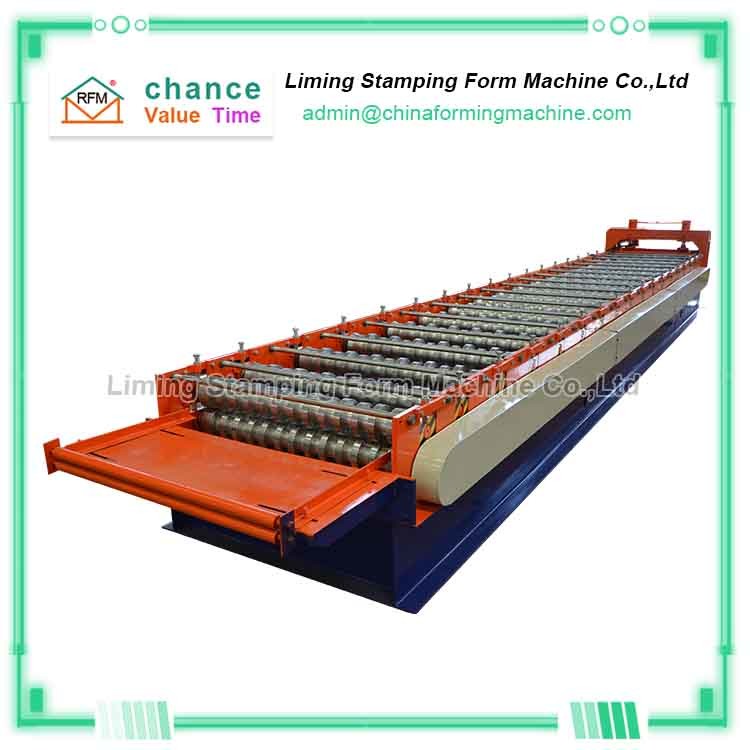

Main parameters of Automatic 900 roof slab forming machine
| Main Motor Power | 3kw |
| Hydraulic Station Power | 3kw |
| Hydraulic Oil Pump | CB-E310 |
| Sprocket | P-25.4 |
| Roller Station | 9 |
| Yield strength | 32MPa |
| Diameter of Principal Axis | 70MM |
| Material of Roller | 45#steel hard chrome plating |
| Processing Speed | 8m/min |
| Installation Dimension (L*W*H) | 6m*1.2m*1.3m |
| Total Weight | 7T |
| Equipment Parts | roll forming system, hydraulic system, PLC frequency conversion control system, counter and cutting system. |
| Production | according to customers' demand |
