| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-gutter 1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200set/Year |
| Certification: | CE/ISO | Condition: | New |
|---|---|---|---|
| Weight: | 3.5T | Voltage: | 380V 50Hz 3phases |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 2 Years |
| Raw Material: | Color Steel Sheet,galvanized Steel Sheet | Model Gutter Downspout Ridge Cap Rolling Forming Machines: | 0.3-1mm |
| Dimension(L*W*H):: | 4000*1000*1000mm | Roll Stations:: | 13 Rows |
| Highlight: | Downspout Ridge Cap Roll Forming Machine,3.5T Ridge Cap Roll Forming Machine |
||

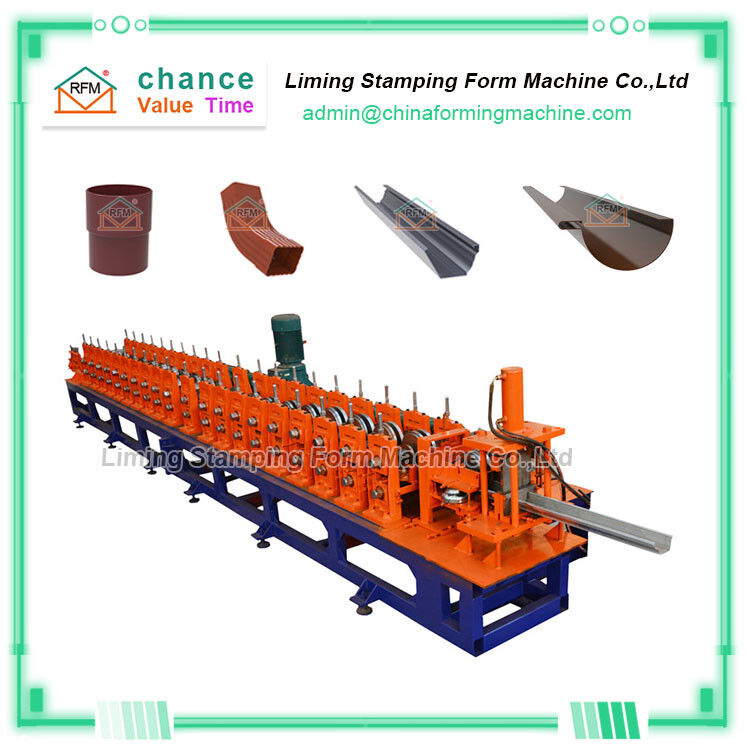

Model Gutter Downspout Ridge Cap Rolling Forming Machines
Model Gutter Downspout Ridge Cap Rolling Forming Machines sales and repair services. Since 1966, Englert has been the pre-eminent force in residential rainware with a program of high quality products and value-added roll forming equipment backed by a high level of technical and marketing support.
Englert offers a full line of roll forming equipment for 5" and 6" K-Style gutter products, 7” Box Gutters, as well as machines for its unique, one-piece LeafGuard Brand gutter system and the revolutionary RainPro gutter system.
A factory-trained staff of service technicians supports every gutter machine purchased from Englert. Both in our headquarters and in our many Field Service Centers, these technicians help our contractors and dealers keep their Englert machines running properly and efficiently.
All of our gutter machines are warranteed for five years. And we offer the most comprehensive contractor and machine training programs in the gutter industry today.
Technical Parameters of Model Gutter Downspout Ridge Cap Rolling Forming Machines
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 100-160mm |
| 3 | Roller station | 15-26 rows |
| 4 | Thickness of feeding material | 0.3-0.8mm |
| 5 | Power Supply | 380V, 3-Phase,50Hz |
| 6 | Productivity | 10-20m/min |
| 7 | Rollers' material | 45# steel |
| 8 | Diameter of shaft | 75mm |
| 9 | Roller Diameter | 50mm |
| 10 | Wall thickness of main forming machine | 14mm steel plate |
| 11 | Main forming machine body | 300 mm H steel |
| 12 | Motor power | 4+3kw |
| 13 | Cutter Standard | GCr12 |
| 14 | Size | 7500*1500*1600mm |
| 15 | Weight | About 4 T |
| 16 | Custom | According to customer's requirements |
