| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-gutter8 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Operation:: | Touch Screen And Button | Machine Color:: | According To Customer's Requirement |
|---|---|---|---|
| Suitable Material:: | PPGI | Production Capacity:: | 8-12m/min |
| Main Frame:: | H450 | Dimension(L*W*H):: | 7200mm*800mm*1200mm |
| Rolling Thinckness:: | 0.45-0.55mm | Feeding Width:: | 310mm |
| Diameter Of Shafts:: | 60-80mm | Warranty:: | 2 Years |
| Highlight: | L6500 Gutter Roll Forming Machine,L6500 Gutter Making Machine,Touch Operation Gutter Roll Forming Machine |
||

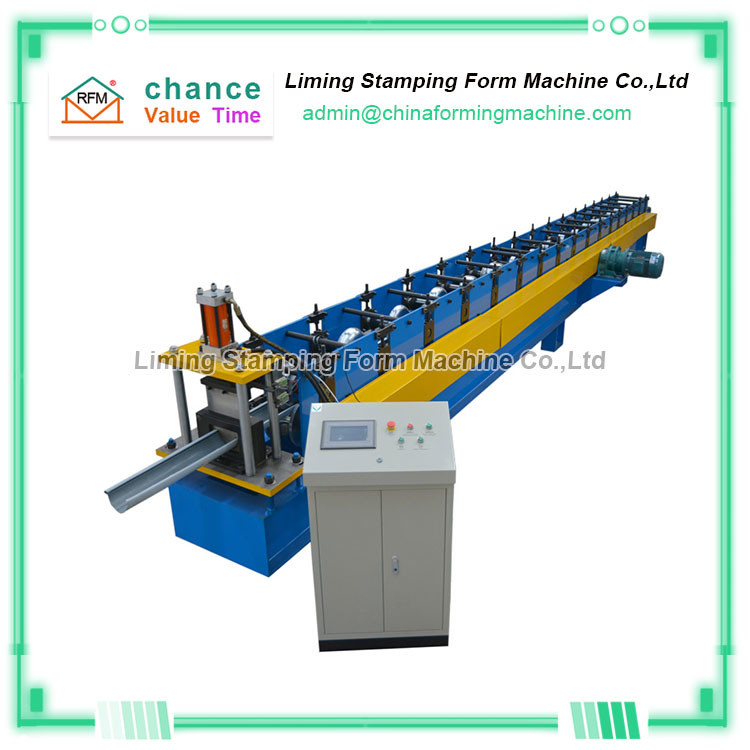

Full Automatic Downspout And Gutter Roll Forming Machine
Early concrete drainage ditch mainly has the following disadvantages:
1 Black spots caused by raindrops
2 It has been oxidized and broken for many years
3Once installed, the gutter system we produce cannot be replaced
The above-mentioned problem "Full automatic downspout and gutter roll forming machine" can completely solve your problem
The decorative cornice design of the gutter produced by the "Full automatic downspout and gutter roll forming machine" is integrated with the architectural style of the house. In order to improve the beauty and taste of the overall building,
"Full automatic downspout and gutter roll forming machine" has a reasonable structure design, simple and practical, easy to install, good toughness, good low-temperature impact resistance, and integrates beauty and practicality.
The size of the gutter produced by the "Full automatic downspout and gutter roll forming machine" is usually determined according to the roof catchment area.
"Full automatic downspout and gutter roll forming machine" is processed by machine tools. The blade has good toughness, abrasion resistance, sharpness, fast cutting and cutting board thorn effect, which is convenient for construction and installation.
Main parameters of Full Automatic Downspout And Gutter Roll Forming Machine
| 1.Weight capacity of decoiler | 3.8T |
| 2.Appearance Size(L*W*H) | 6500*1300*1100 |
| 3.Raw material /feeding sheet material | colored steel & galvanized steel |
| 4.Roller material | 45# high grade steel |
| 5.Shaft material | 45# high grade steel |
| 6.Kind of drive | chain drive |
| 7.Cutting system | automatic hydyaulic cutting |
| 8.Cutting blade material | Cr 12 high grade steel |
| 9.Frame material | 300 H-high grade steel |
| 10. Control system | totally automatic PLC control system |
| 11.Main power | 3 kw |
| 12.Roller stations | 13 rows |
| 13.Speed of production | 2-4m/min |
| 14.Thickness of colored steel | 0.2-0.8mm |
| 15.Frame material | 300 H-steel |
