| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Rolling Thinckness: | 0.4-0.8 Mm | Production Capacity: | 100% |
|---|---|---|---|
| Condition: | New | Place Of Origin: | China |
| Voltage: | 380V.50HZ.3Phase | Weight: | 7TONS |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Dimension(L*W*H): | 5.5*1*1.2KW | Feeding Width: | 900mm |

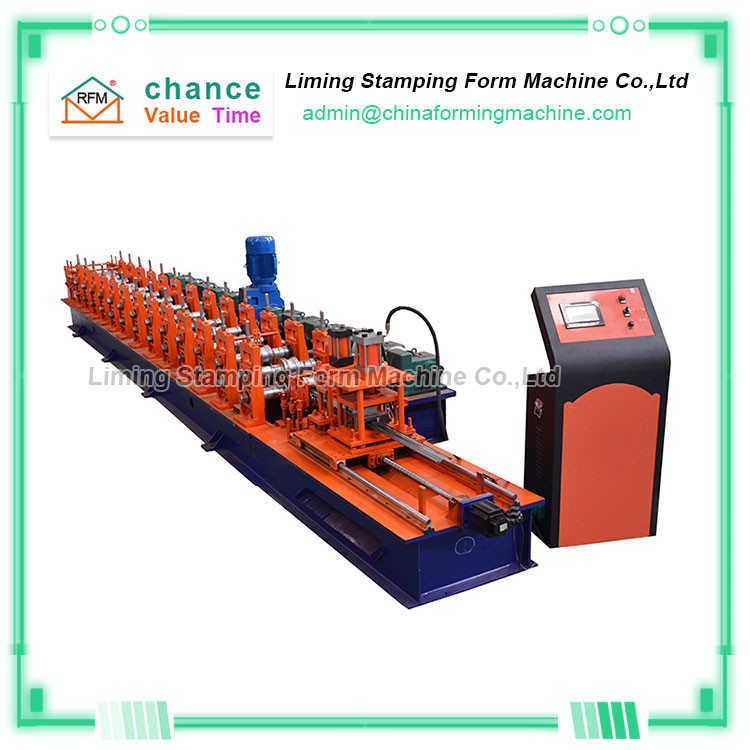

Gearbox Drive Windproof Rolling Shutter Door Machine
The gearbox drive windproof rolling shutter machine is used to quickly produce the shutter panel of the rolling shutter, which is faster than the ordinary rolling shutter machine.
A rolling door produced by a by the earbox drive windproof rolling shutter machine.
It has the function of quickly isolating the workshop air and making it dust-free.
Gearbox driven windproof rolling shutter machines are widely used in various fields such as medical treatment, food, electronics, chemistry, cigarettes, printing, textiles, machinery, logistics and warehousing, and area isolation of clean industrial factories.
Technical Parameters Of Gearbox Drive Windproof Rolling Shutter Door Machine
| Roller station | 12 Steps |
| Shaft Diameter | 50mm, -0.01~-0.03(with key-way) |
| Roller Material | Cr12 with key-way |
| Heat Treatment | Vacuum quenching upto hardness 58℃ |
| Fine Machining | CNC Lathe after vacuum quenching |
| Machine Structure | 5mm under-frame and 20mm worktable |
| Motor Power | 5.5KW(Lichao,Shanghai) |
| Hydraulic pressure | 25 Mpa |
| Operation | English Touch Screen |
| Voltage Standard | 380V/3Phases/50Hz |
| Production Speed | 15-30m/min |
