| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Rolling Thinckness: | 0.4-0.8 Mm | Production Capacity: | 8-15M/Min |
|---|---|---|---|
| Condition: | New | Place Of Origin: | China |
| Voltage: | 380V.50HZ.3Phase | Weight: | 7TONS |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Dimension(L*W*H): | 6500*1300*1100 | Use: | Shop Shutter Door |

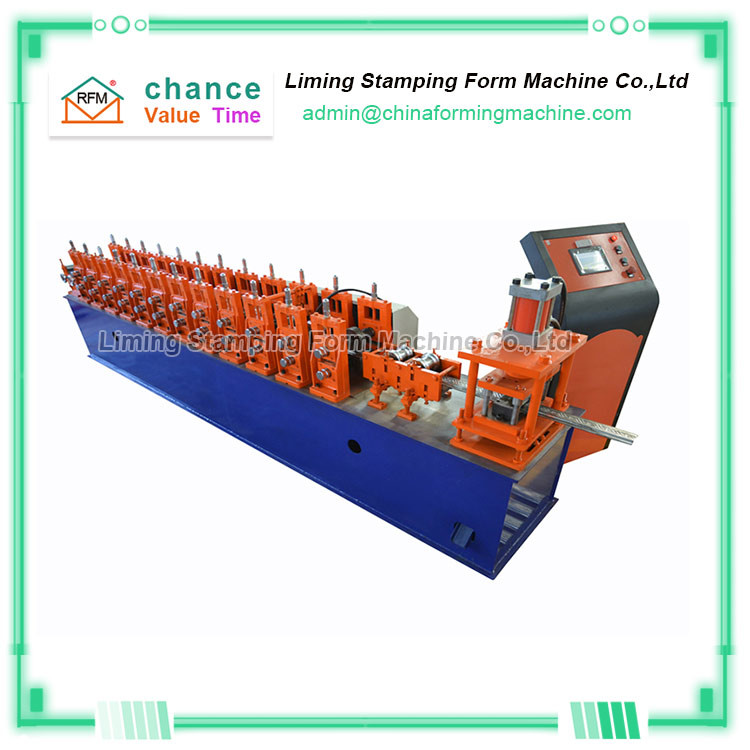

Chinese Knot Embossment Rolling Shutter Door Machine For Sale
Rollers of Chinese knot embossment rolling shutter door machine for sale
High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.Using high qualiy thick shaft, the strength is more durable
Machine body of Chinese knot embossment rolling shutter door machine for sale
The main body of the body without welding, all the use of cast steel, prevent the host body deformation.
PLC Control System of Chinese knot embossment rolling shutter door machine for sale
Usually we prodvide the Delta PLC control system, but we can make that according to your need.
Terms of trade of Chinese knot embossment rolling shutter door machine for sale
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: tianjin port
4. Type of payment: by T/T or by L/C
Export countries of Chinese knot embossment rolling shutter door machine for sale
Australia, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore, Malaysia ,Thailand,Philippines, Myanmar ,Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
Technical Parameters Of Chinese Knot Embossment Rolling Shutter Door Machine For Sale
| Chinese Knot Embossment Rolling Shutter Door Machine For Sale | ||
| 1.Raw material | Thickness | 0.8-1.2mm |
| 2.Decoiler | Operation | automatic |
| Weight apacity | 2-5t | |
| 3.Main body | Roller station | 10-15 rows |
| Diameter of shaft | 65-80mm | |
| Material of rollers | 45# steel | |
| Material of shaft | 45# steel | |
| Frame | 16-18mm | |
| Chain | 1.32-1.97inch | |
| 4.Cutter | Operate | auto |
| Blade Material | cr12mov | |
| 5. Power | Voltage | customized |
| Power | 4-7.5kw | |
| 6.Control system | Electric Box | customized/Delta |
| Language | english chinese/customzied | |
| 7.Forming Speed | Forming Speed | 20-35m/min |
