| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Key Selling Points: | Easy To Operate | After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning |
|---|---|---|---|
| Brand Name: | LIMING | Tile Type: | Steel |
| Voltage: | 380V.50HZ.3Phase | Roller Material: | 45#steel Chrome Plated |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Dimension(L*W*H): | 5000*800*1200mm | Use: | Shutter Door |

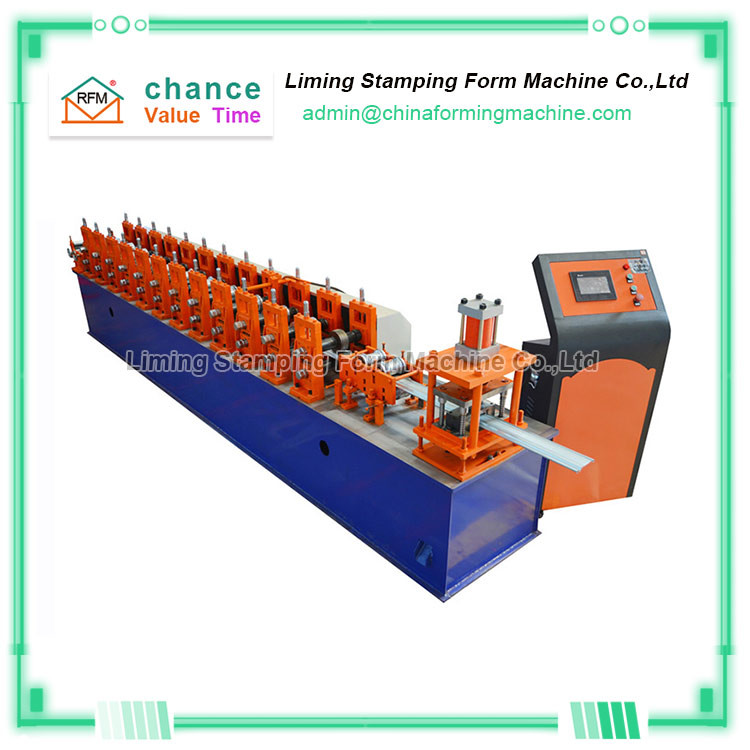

Fireproof Galvanized Aluminium Rolling Shutter Door Machine
The Fireproof Galvanized Aluminium Rolling Shutter door machine is an equipment for producing single-piece fire-resistant galvanized aluminum rolling shutter doors. The Fireproof Galvanized Aluminium Rolling Shutter door machine adopts the design of printing rollers, which can automatically print flower shapes on the rolling shutters during the cold forming process. In addition to its beautiful appearance, it can also strengthen the load-bearing effect of rolling shutter door panels. It is a new type of rolling shutter door panel processing equipment.
Fireproof galvanized aluminum rolling shutter door machine is suitable for: commercial facades, garages, shopping malls, hospitals, factories and mining enterprises and other public places or residences.
Technical Parameters Of Fireproof Galvanized Aluminium Rolling Shutter Door Machine
| Fireproof Galvanized Aluminium Rolling Shutter door machine | |
| Description | offered specification |
| Material thickness | 0.7-1.2mm |
| Raw material | Galvanized coils yield strength ≤G250MPa |
| Forming speed | 8-15m/min |
| Decoiler | 3 Ton manual decoiler |
| Material of main shaft | 45# high quality steel |
| Levelling device | 7 roller levelling including 3 top rollers and 4 bottom rollers |
| Cutting | hydraulic cutting; quenching HRC58-62 |
| Motor power of hydraulic station | 4kw |
| Hydraulic station pressurre | 12Mpa |
| Tolerance | 6m+-1.5mm |
| Machine Frame | H Beam Steel |
