| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type: | Colored Steel Plate, Galvanized Board, Aluminum Plate Ect | After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning |
|---|---|---|---|
| Brand Name: | LIMING | Tile Type: | Steel |
| Voltage: | 380V.50HZ.3Phase | Feeding Width: | 122mm Or According To Client’s Requirement |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Dimension(L*W*H): | 5000*800*1200mm | Drving Way: | Gearbox |

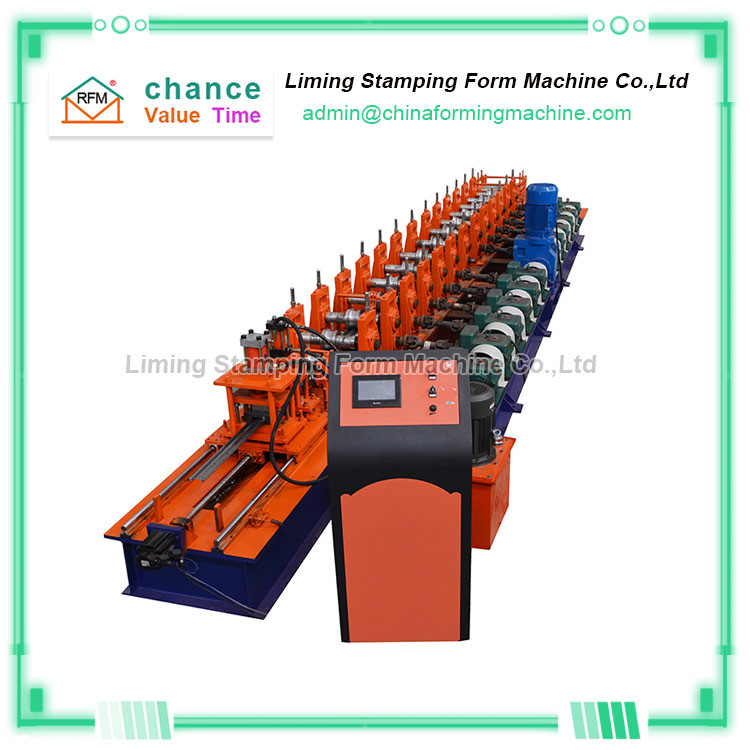

High Precision 125mm Rolling Shutter Door Forming Machine
The High precision 125mm rolling shutter door forming machine is suitable for commercial facades, garages, large shopping malls, hospitals, factories and mining enterprises, and other public places or residences.
The roller shutter door produced by the High precision 125mm rolling shutter door forming machine has the same function as the wall and has the function of horizontal separation. It consists of a curtain board, a seat board, a guide rail, a bracket, a reel, a box, a control box, a roller door machine and a stopper. , Door, manual quick release switch device, button switch and safety device, etc. 13 parts, usually installed on the wall that is not easy to separate, high precision 125mm rolling door forming machine.
We have more than 20 years of experience in manufacturing High precision 125mm rolling shutter door forming machines.
Technical Parameters Of High Precision 125mm Rolling Shutter Door Forming Machine
| No. | Type | Specification | |
| 1 | Row Material | Type | Colored steel plate, Galvanized board, Aluminum plate ect |
| Feeding width | 122mm or According to client’s requirement | ||
| Thickness | 0.7-0.8mm | ||
| 2 | Main Body | Forming roller station | 12 Stations |
| Straight roller station | 3 Stations ( Up layer 2 rollers , down layer 3 rollers ) | ||
| Diameter of shaft | 40mm | ||
| Shaft material | High grade 45# steel | ||
| Roller material | High grade 45# steel , hard treatment and polishing ( plated chrome on surface ) | ||
| Main body frame | Whole set of square pipe | ||
| Frame thickenss | 14 mm | ||
| Working speed | 8-15 m/min | ||
| Size (L*W*H) | About 6800*850*1310mm | ||
| Weight | About 2.5 tons | ||
| 3 | Power | Motor power | 3 kw |
| Hydraulic power | 3 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Drving Way | Gearbox | ||
| Language | English and Chinese | ||
| Brand Of PLC | Delta brand ( Touch Screen ) | ||
| Operation | Manual and Automatic ( Two Type ) | ||
| 4 | PLC Control System | Transducer | Delta brand |
| Cutting Type | Hydraulic Cutting | ||
| Blade of Cutting | Cr12 , quenching treatment | ||
| 5 | Cutting Device | Cutting Tolerance | ± 1mm |
