| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD8 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Raw Material : | Galvanized Coils Yield Strength ≤G250MPa | After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning |
|---|---|---|---|
| Brand Name: | LIMING | Shaft Material: | 45#steel-high Quality Steel, Diameter 70 Mm |
| Voltage: | 380V.50HZ.3Phase | Thickness: | 0.7-2.0mm |
| Warranty: | 24 Months | Certification: | CE、BV、ISO |
| Dimension(L*W*H): | 6500mm*800mm*1200mm(depends On Final Design) | Drving Way: | Gearbox |

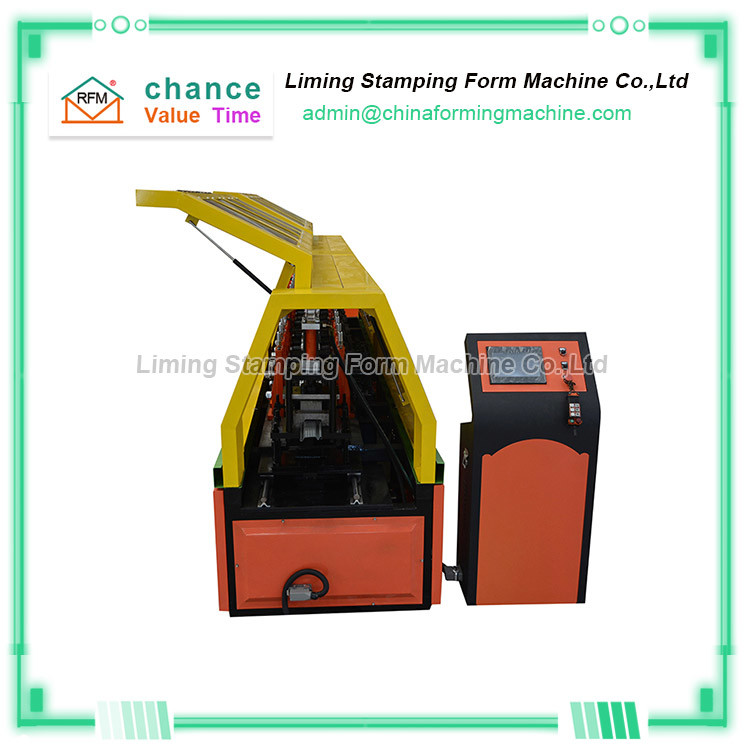

Construction Building Material Rolling Shutter Door Forming Machine
The construction building material rolling shutter door forming machine is composed of a feeding frame, a forming host and a hydraulic fixed-length punching machine.
The construction building material rolling shutter door forming machine does not waste, does not produce chips, saves material costs, and has high production efficiency.
The cutting system of the construction building material rolling shutter door forming machine: adopts advanced hydraulic transmission, automatically cuts after forming, no deformation, no waste, and high safety factor.
Technical Parameters Of Construction Building Material Rolling Shutter Door Forming Machine
| Description | offered specification |
| Material thickness | 0.7-2.0mm |
| Raw material | Galvanized coils yield strength ≤G250MPa |
| Forming speed | 8-15m/min |
| Decoiler | 3 Ton passive decoiler |
| Material of main shaft | 45# high quality steel |
| Levelling device | 7 roller levelling including 3 top rollers and 4 bottom rollers |
| Cutting | hydraulic cutting; quenching HRC58-62 |
| Motor power of hydraulic station | 4kw |
| Hydraulic station pressurre | 12Mpa |
| Tolerance | 6m+-1.5mm |
| Machine Frame | H Beam Steel |
