| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD9 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Raw Material : | Galvanized Coils Yield Strength ≤G250MPa | After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning |
|---|---|---|---|
| Brand Name: | LIMING | Feeding Width: | 122mm Or According To Client’s Requirement |
| Voltage: | 380V.50HZ.3Phase | Thickness: | 0.7-2.0mm |
| Working Speed: | 8-15 M/min | Certification: | CE、BV、ISO |
| Dimension(L*W*H): | 6500mm*800mm*1200mm(depends On Final Design) | Forming Roller Station: | 12 Stations |

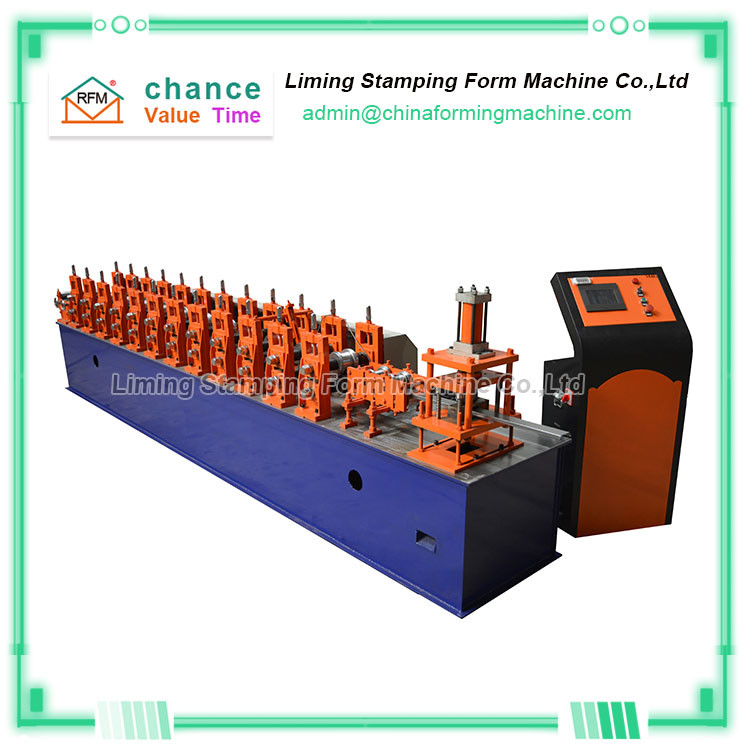

Galvanized 140mm Rolling Shutter Door Forming Machine
The galvanized roller shutter door curtain sheet produced by the Galvanized 140mm Rolling Shutter Door Forming Machine can resist weak corrosive media such as air, steam and water, and has the advantage of not being easy to rust. Importantly, the galvanized roller shutter door curtain sheet produced by the Galvanized 140mm Rolling Shutter Door Forming Machine also has a fireproof effect.
The Galvanized 140mm Rolling Shutter Door Forming Machine is composed of curtain plates, rolling elements, guide rails, electric drive devices, etc.
The Galvanized 140mm Rolling Shutter Door Forming Machine has the characteristics of good rigidity and excellent sealing performance. It is an essential fire prevention facility in modern high-rise buildings. In addition to the functions of ordinary doors, fire doors also have the functions of preventing fire, smoke, restraining the spread of fire and protecting personnel from evacuation.
Galvanized 140mm Rolling Shutter Door Forming Machine is widely used in high-rise buildings, large shopping malls and other crowded occasions.
Technical Parameters Of Galvanized 140mm Rolling Shutter Door Forming Machine
| No. | Type | Specification | |
| 1 | Row Material | Type | Colored steel plate, Galvanized board, Aluminum plate ect |
| Feeding width | 122mm or According to client’s requirement | ||
| Thickness | 0.7-0.8mm | ||
| 2 | Main Body | Forming roller station | 12 Stations |
| Straight roller station | 3 Stations ( Up layer 2 rollers , down layer 3 rollers ) | ||
| Diameter of shaft | 40mm | ||
| Shaft material | High grade 45# steel | ||
| Roller material | High grade 45# steel , hard treatment and polishing ( plated chrome on surface ) | ||
| Main body frame | Whole set of square pipe | ||
| Frame thickenss | 14 mm | ||
| Working speed | 8-15 m/min | ||
| Size (L*W*H) | About 6800*850*1310mm | ||
| Weight | About 2.5 tons | ||
| 3 | Power | Motor power | 3 kw |
| Hydraulic power | 3 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Drving Way | By Gear | ||
| 4 | PLC Control System | Language | English and Chinese |
| Brand Of PLC | Delta brand ( Touch Screen ) | ||
| Operation | Manual and Automatic ( Two Type ) | ||
| Transducer | Delta brand | ||
| 5 | Cutting Device | Cutting Type | Hydraulic Cutting |
| Blade of Cutting | Cr12 , quenching treatment | ||
| Cutting Tolerance | ± 1mm | ||
