| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD10 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Raw Material : | Galvanized Coils Yield Strength ≤G250MPa | After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning |
|---|---|---|---|
| Product Name: | Good Quality Of Roller Shutter Door Roll Forming Machine | Number Of Forming Groups: | 12 Composition Molds, 3 Sets Of Straightening Wheels |
| Voltage: | 380V.50HZ.3Phase | Thickness: | 0.7-2.0mm |
| Machine Weight: | 3.2t | Certification: | CE、BV、ISO |
| Dimension(L*W*H): | 6500mm*800mm*1200mm(depends On Final Design) | Forming Roller Station: | 12 Stations |

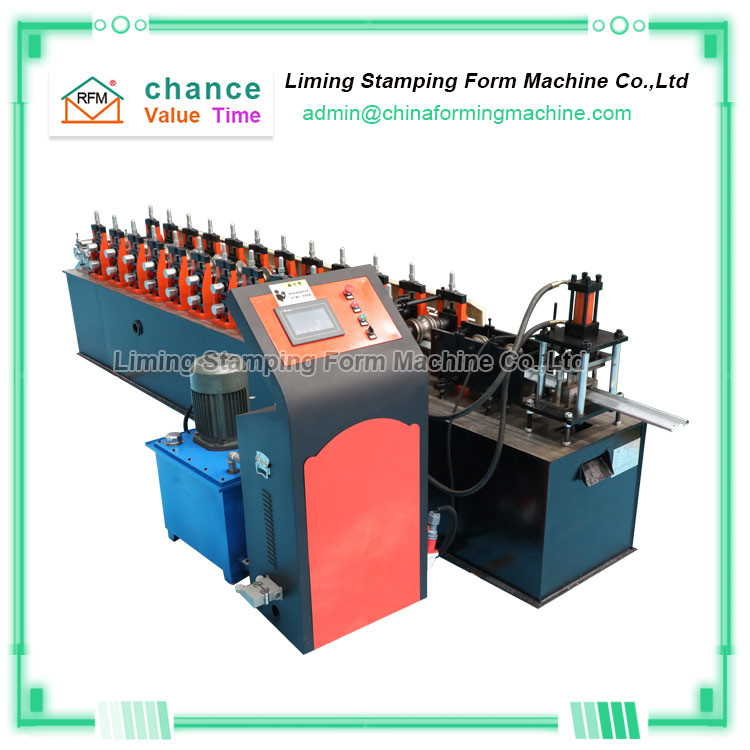

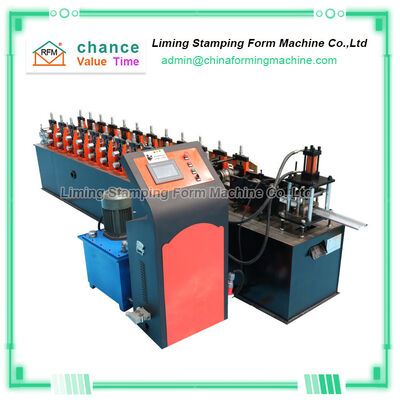

Good Quality Of Roller Shutter Door Roll Forming Machine
Good quality of roller shutter door roll forming machine after-sales service
In the correct operation and maintenance, high-quality rolling doors can be guaranteed for two years in the factory.
The Good quality of roller shutter door roll forming machine is mainly composed of a feeder, a feeding platform, a forming host, a forming shear device, a hydraulic station and a computer control system. The Good quality of roller shutter door roll forming machine is equipped with a sealing machine. The optional equipment of Good quality of roller shutter door roll forming machine includes laminating roller and inverter.
Technical Parameters Of Good Quality Of Roller Shutter Door Roll Forming Machine
| product name | Good Quality Of Roller Shutter Door Roll Forming Machine |
| product brand | Liming Machinery |
| Number of forming groups | 12 composition molds, 3 sets of straightening wheels |
| Commodity origin | Hebei Province,China |
| Mold material | The bearing steel is quenched and the surface is plated with hard chromium |
| frame | Square tube rack |
| Wall panel | 14mm |
| Main bearing | Harbin Bearing |
| Drive motor | 3KW |
| transmission | gear drive |
| Machine weight | 3.2t |
| Mechanical Dimensions | 4.5*0.6*1.2m |
| Cutting method | Hydraulic die cutting |
| Production cycle | 15-35 days |
| Warranty | Lifetime maintenance |
| axis | Diameter 40 |
