| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD12 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Rolling Speed: | 18 M/min | After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning |
|---|---|---|---|
| Type: | Color Steel Sheet; Galvanized Sheet; Aluminum Steel | Number Of Forming Groups: | 12 Composition Molds, 3 Sets Of Straightening Wheels |
| Yield Strength(Mpa): | 230-300 | Material Thickness: | 1.5-2mm |
| Hydraulic Motor Power(KW): | 5.5 | Certification: | CE、BV、ISO |
| Dimension(L*W*H): | Length 4500mm* Width 600mm* Height 800mm | Forming Roller Station: | 12 Stations |
| Highlight: | Stainless Steel Rolling Shutter Machine,18 m/min Rolling Shutter Machine |
||

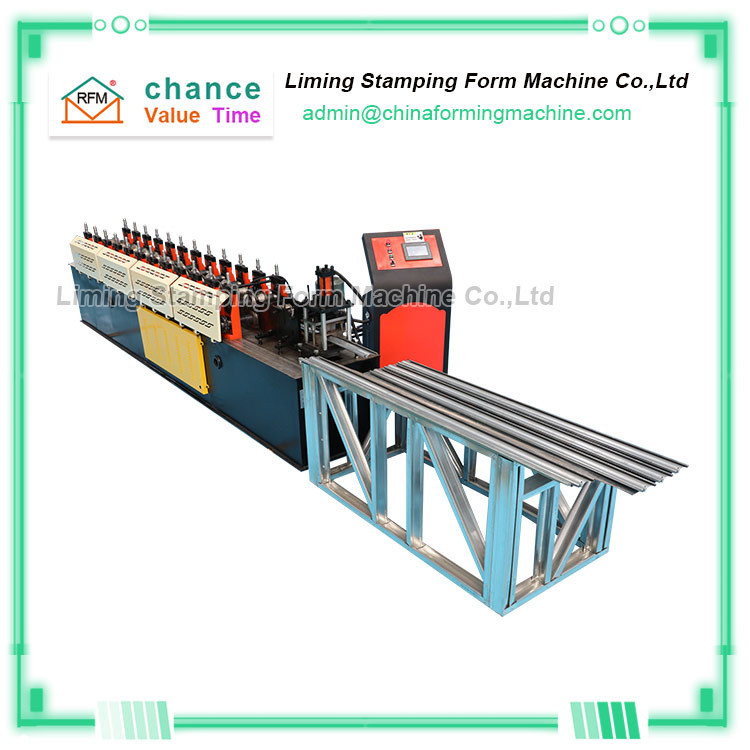

125 Stainless Steel Rolling Shutter Forming Machine
The forming wheel of 125 stainless steel rolling shutter forming machine:
The use of high-spec steel cast wheels has the characteristics of long-lasting wear resistance and long life.
Hydraulic shearing system of 125 stainless steel rolling shutter forming machine:
When hydraulic shearing is used, the force is more even, and it can ensure the gloss of the product after shearing without burrs.
Computer control system of 125 stainless steel rolling shutter forming machine:
Choose between automatic and manual mode, touch screen operation interface, convenient and easy to operate.
The finished product of 125 stainless steel rolling shutter forming machine:
The slats and slats have been perfectly matched to prevent decoupling.
Technical Parameters Of 125 Stainless Steel Rolling Shutter Forming Machine
| Item | Parameters | |||
| Material | Type | Color steel sheet; galvanized sheet; aluminum steel | ||
| Thickness(mm) | 0.4-0.7 | |||
| Yield strength(Mpa) | 230-300 | |||
| Forming speed(m/min) | 10-15 | |||
| Roller material | 45# sheet with chrome plated | |||
| Roller driven type | Chain transmission | |||
| Control type | PLC | |||
| Operation type | Touch screen +button | |||
| Hydraulic system pressure(Mpa) | 12 | |||
| Hydraulic motor power(KW) | 5.5 | |||
| Main motor power(KW) | 4 | |||
| Total power(KW) | 9.5 | |||
| Total weight(Kg) | About 10000 | |||
