| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD13 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Rolling Speed: | 18 M/min | After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning |
|---|---|---|---|
| Name Of Machine: | Windproof And Fireproof Rolling Shutter Forming Machine | Number Of Forming Groups: | 12 Composition Molds, 3 Sets Of Straightening Wheels |
| Equipment Operation: | Automatically Plc | Thickness Of Sheet: | 0.4-1.5mm |
| Hydraulic Motor Power(KW): | 5.5 | Certification: | CE、BV、ISO |
| Dimension(L*W*H): | Length 4500mm* Width 600mm* Height 800mm | Forming Roller Station: | 12 Stations |
| Highlight: | 124 Rows Shutter Door Machine,380V Door Roll Forming Machine,124 Rows Door Roll Forming Machine |
||

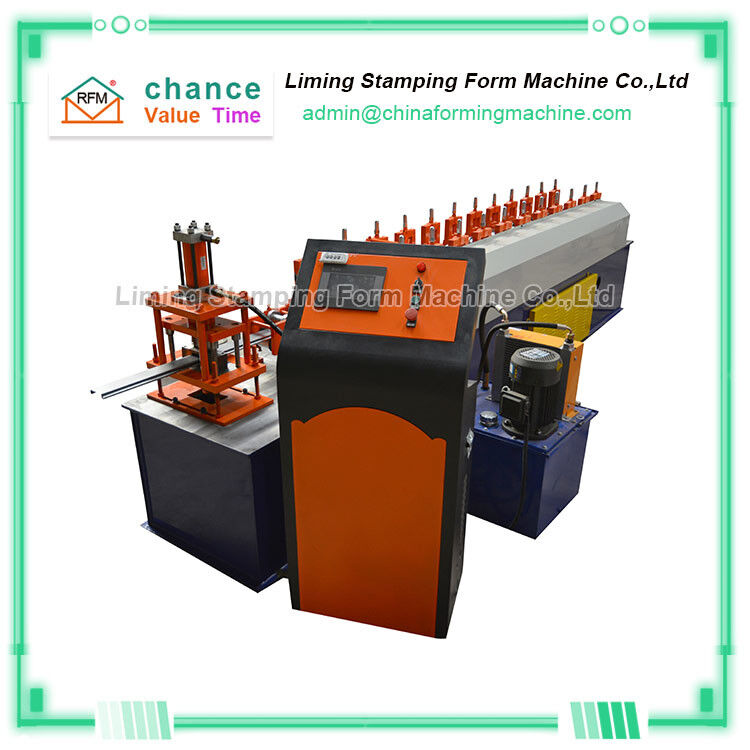

Windproof And Fireproof Rolling Shutter Forming Machine
The Windproof and fireproof rolling shutter forming machine has beautiful appearance, low working noise and high production efficiency.
The Windproof and fireproof rolling shutter forming machine can be used on one machine and can produce three kinds of products at the same time: single laminated board, ordinary I-shaped aluminum composite board and tongue and groove composite board.
The main machine of the Windproof and fireproof rolling shutter forming machine adopts advanced frequency conversion speed control components and automatic fixed-length cutting and training components.
Windproof and fireproof rolling shutter forming machine are widely used in the production of rolling shutter doors in various factories, warehouses and supermarkets.
Technical Parameters Of Windproof And Fireproof Rolling Shutter Forming Machine
| 1 | Name of Machine | Windproof and fireproof rolling shutter forming machine |
| 2 | Equipment operation | automatically plc |
| 3 | Total power | 5.5kw(or as machine'require) |
| 4 | Effective Width | 312mm |
| 5 | Rollers No | 124rows |
| 6 | OD of Rollers | 25-30mm |
| 7 | Productivity | 15-30m/min |
| 8 | Weight | around 3.5T |
| 9 | Voltage | 380V50Hz 3Phases |
| 10 | Machine Dimension (Hight*width*length) | 0.93mX0.67mX6.08m |
| 11 | Thickness of sheet | 0.4-1.5mm |
| 12 | Cutting Device | Cutting by flying saw |
| 13 | Range of using | warehouse , supermarket , garage,etc |
