| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD15 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Productivity: | Shutter As The Drawing | After-sales Service Provided: | Online Support, Free Spare Parts, Field Installation, Commissioning |
|---|---|---|---|
| Material Specification: | Aluminum, Galvalume, Galvanized And Pre-painted Galvanized Steel. | Number Of Forming Steps: | 14 Steps |
| Equipment Operation: | Automatically Plc | Thickness: | 0.8-1.2 Mm |
| Hydraulic Motor Power(KW): | 5.5 | Certification: | CE、BV、ISO |
| Material Of Shafts: | 45# Steel Adjustable Treatment. Outer Diameter 42 Mm | Forming Roller Station: | 12 Stations |
| Highlight: | 125 Roller Shutter Guide Making Machine,14 Steps Shutter Guide Making Machine,14 Steps rolling shutter making machine |
||

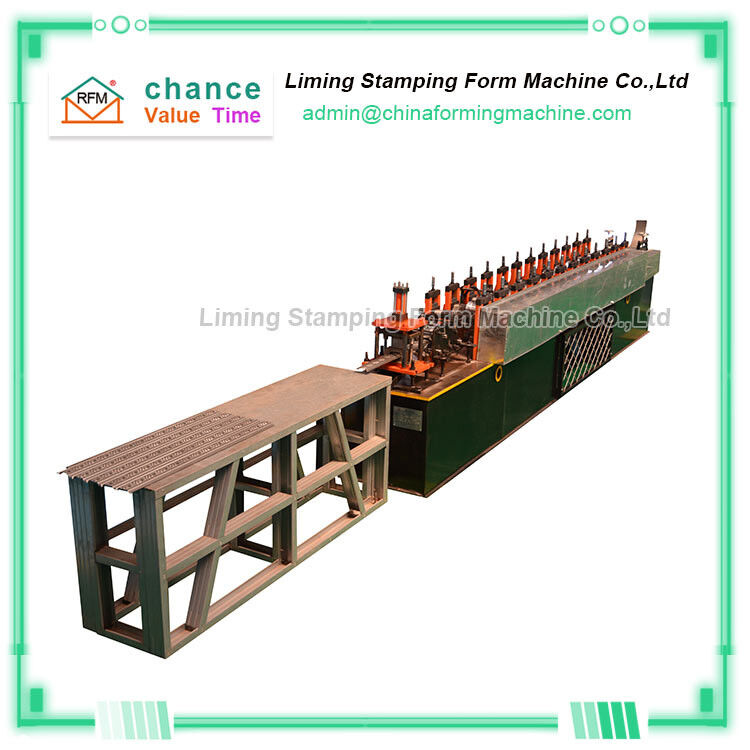

125 Roller Flower Rolling Shutter Roll Forming Machine
The 125 roller flower rolling shutter roll forming machine uses copra software to determine the number of forming rollers according to the product drawings.
The 125 roller flower rolling shutter roll forming machine adopts advanced hydraulic drive, without a separate punching device, and automatically cuts after molding, without deformation, no waste, and high safety factor.
The service of 125 roller flower rolling shutter roll forming machine, 24 hours service, you are welcome to visit and inquire at any time,No matter where you are, LIMING has the experience, knowledge and skills to meet your needs and requirements.
Technical Parameters Of 125 Roller Flower Rolling Shutter Roll Forming Machine
| Main forming machine | |
| Number of forming steps | 14 steps |
| Material of shafts | 45# steel adjustable treatment. Outer diameter 42 mm |
| Material of rollers | 45#steel, plating hard chrome on the surface, rigidity HR55°-57° |
| Main motor power | 3 kw |
| The speed of forming | 8m/min |
| Thickness of the steel | 0.8-1.2 mm |
| Dimension of the machine | 4500*800*1000mm |
| Weight of the machine | 2000kg |
| The electrical control system | |
| Display | textscr |
| The main computer (PLC) | Tai Da DVP14ES |
| Hydraulic system | |
| Power | 3KW |
