| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD16 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Productivity: | Shutter As The Drawing | Processing Material: | GI |
|---|---|---|---|
| Production Speed: | Approximate 15-25 M/min | Number Of Forming Steps: | 14 Steps |
| Equipment Operation: | Automatically Plc | Thickness: | 0.8-1.2 Mm |
| Hydraulic Motor Power(KW): | 5.5 | Certification: | CE、BV、ISO |
| Material Of Shafts: | 45# Steel Adjustable Treatment. Outer Diameter 42 Mm | Forming Roller Station: | 12 Stations |
| Highlight: | GI Metal Sheet Forming Machine,Embossing Shutter Roll Forming Machine,GI Shutter Roll Forming Machine |
||

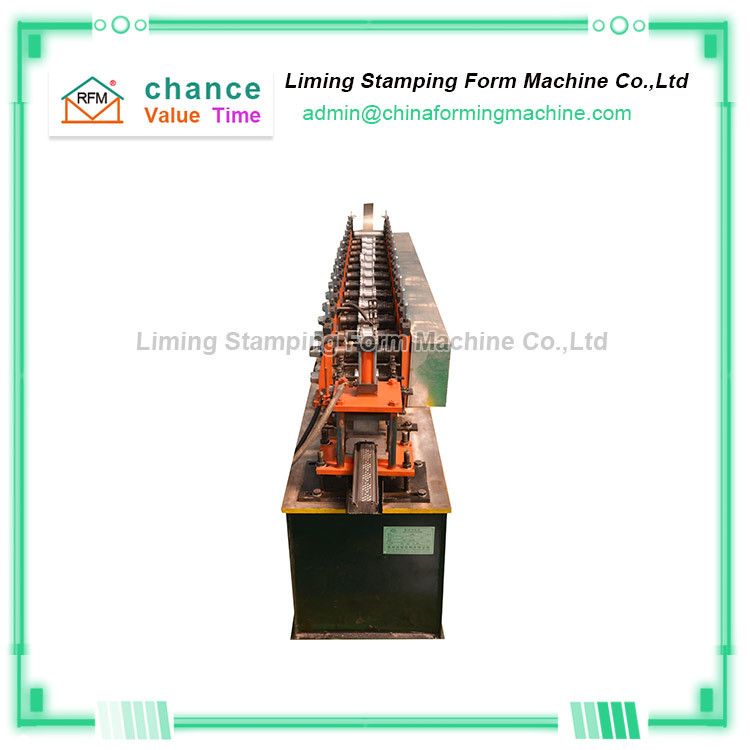

Automatic 140 Roller Embossing Rolling Shutter Forming Machine
Features of the fully automatic 140 roller embossing rolling shutter forming machine:
1. Fully automatic 140 roller embossing rolling shutter forming machine is light in weight, high in strength, strong in load-bearing capacity and good in impact resistance;
2. Fully automatic 140 roller embossing rolling shutter forming machine is simple and quick in structure and easy to assemble;
3. The shortcomings of the fully automatic 140 roller embossing rolling shutter forming machine instead of the traditional template;
4. Fully automatic 140 roller embossing rolling shutter forming machine can be used as a part of structural strength to reduce material cost;
5. Fully automatic 140 roller embossing rolling shutter forming machine is easy to reinforce, wire and pipe;
6. The appearance of the automatic 140 roller embossing rolling shutter forming machine is neat and beautiful.
Technical Parameters Of Automatic 140 Roller Embossing Rolling Forming Machine
| NO | Item | Description |
| 1 | Product' sizes | According to customer's request |
| 2 | Processing material | GI |
| 3 | Processing thickness | 0.5-1.0mm |
| 4 | Main motor power | 7.5kw |
| 5 | Power of hydraulic station | 5.5kw |
| 6 | Quantity of roller stations | 14 |
| 7 | Production speed | Approximate 15-25 m/min |
| 8 | Diameter of shafts | Φ75mm |
| 9 | Material of rollers | Cr12 steel with vacuum heat treatment HRC57°-60° |
| 10 | Material of shafts | 45# steel quenched and tempered |
| 11 | Material of cutting blades | Cr12 mould steel with quenched treatment |
| 12 | Size of machine | Approximate 6500mm(L)×1200mm(W)×1300mm(H) |
| 13 | Theoretical weight | Approximate 7000KGS |
| 14 | Driven method | Chain transmission |
| 15 | Brand of PLC | Yaskawa |
| 16 | Cut mode | Hydraulic profile cutting |
| 17 | Power supply | 380V 50HZ 3Phases or at buyer's requirement |
