| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD20 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Material: | Galvanized Sheet | Use: | Door |
|---|---|---|---|
| Production Capacity: | 8-15m/min | Rows Of Rollers: | 12 Stations |
| Equipment Operation: | Automatically Plc | Thickness: | 0.3-1.2 Mm |
| Machine Weigh: | 5t | Certification: | CE、BV、ISO |
| Material Of Shafts: | 45# Steel Adjustable Treatment. Outer Diameter 42 Mm | Forming Roller Station: | 12 Stations |
| Highlight: | ISO Door Rolling Shutter Machine,Wind Resistant Rolling Shutter Machine,ISO Rolling Shutter Machine |
||

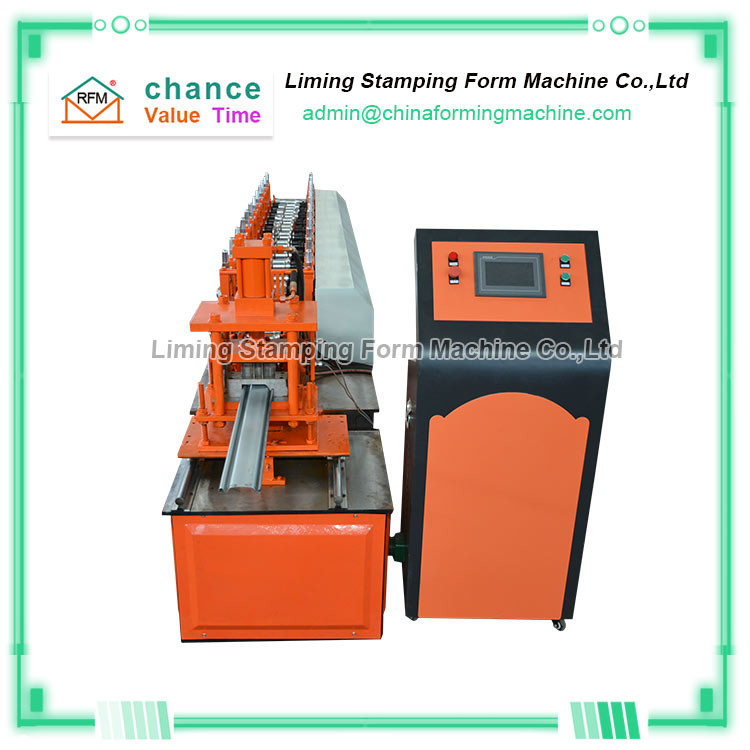

High Strength 175 Wind Resistant Rolling Shutter Door Forming Machine
The rolls of the High strength 175 wind resistant rolling shutter door forming machine are all processed with Gr15 as raw materials.
The key components of the High strength 175 wind resistant rolling shutter door forming machine are processed by CNC machining, fine grinding with a grinder, and wire cutting.
The electrical appliances of the high-strength High strength 175 wind resistant rolling shutter door forming machine are controlled by PLC to realize online tracking and synchronous cutting.
The finished product designed and manufactured by the High strength 175 wind resistant rolling shutter door forming machine has the advantages of high efficiency, convenient operation and low power consumption.
Technical parameters of High Strength 175 Wind Resistant Rolling Shutter Door Forming Machine
| Suitable Material | Material | Galvanized Sheet |
| Thickness | 0.3-1.2 mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 12 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 50mm | |
| Material of blade | Cr12 Heat Treatment | |
| Speed | 15-20 m/min | |
| Side plate thickness | 16 mm | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 4500mm*800mm*1500mm | |
| Electronic control system | PLC +Touch Screen | |
