| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD21 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Condition: | New | Use: | Door |
|---|---|---|---|
| Production Capacity: | 8-15m/min | Rows Of Rollers: | 12 Stations |
| Applicable Industrie: | Building Material Shops, Manufacturing Plant | Thickness: | 0.3-1.2 Mm |
| Machine Weigh: | 13000kg | Certification: | CE、BV、ISO |
| Material Of Shafts: | 45# Steel Adjustable Treatment. Outer Diameter 42 Mm | Forming Roller Station: | 12 Stations |
| Highlight: | SS Roller Shutter Machine,LIMING Rolling Shutter Strip Making Machine,SS Rolling Shutter Strip Making Machine |
||

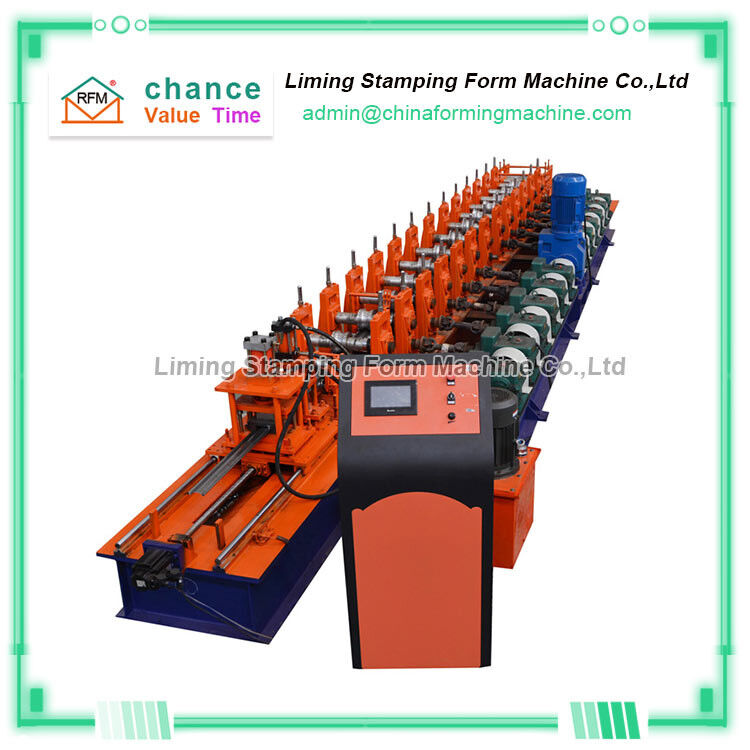

Automatic Stainless Steel Logo Printing Roller Shutter Forming Machine
The Automatic stainless steel logo printing roller shutter forming machine is fully automatic computer control, automatic processing and production. The Automatic stainless steel logo printing roller shutter forming machine adopts imported high-precision computer controller, touch large screen, 7 languages combination, simple and convenient operation, and can be input at the same time Multiple sets of different production data, one-click start processing and production.
Automatic stainless steel logo printing roller shutter forming machine with multiple sets of press roller molds pre-compression forming, and can roll the concave and convex strengthening points or rolling patterns on the surface of the roller shutter door curtain sheet. After forming, the computer controls and automatically cuts off. The cut section is neat, without burrs, and convenient Construction and installation!
The Automatic stainless steel logo printing roller shutter forming machine can perform quality monitoring during the entire production process, so you can choose with confidence.
Technical parameters of Automatic Stainless Steel Logo Printing Roller Shutter Forming Machine
| No | Item | |
| 1 | Suitable Material | Aluminum OR steel |
| 2 | Forming Stations | 38 stations |
| 3 | Roller Material | Cr12Mov, quenching with Chrome plating on surface. Hardness: HRC58~62 |
| 4 | Shaft Material | 45# steel with quenching |
| 5 | Working Speed | 30~35meters per minute |
| 6 | Main motor power | 11KW |
| 7 | Control System | PLC constrol |
| 8 | Cutting | Servo following saw cutting |
