| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD22 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type: | Steel | Use: | Building |
|---|---|---|---|
| Production Capacity: | 8-15m/min | Rows Of Rollers: | 12 Stations |
| Applicable Industrie: | Building Material Shops, Manufacturing Plant | Thickness: | 0.3-1.2 Mm |
| Machine Weigh: | 13000kg | Certification: | CE、BV、ISO |
| Material Of Shafts: | 45# Steel Adjustable Treatment. Outer Diameter 42 Mm | Dimension(L*W*H): | 6m*1.2m*1.4m |
| Highlight: | 15m/Min Rolling Shutter Machine,13000kg CNC Roll Forming Machine,15m/Min CNC Roll Forming Machine |
||

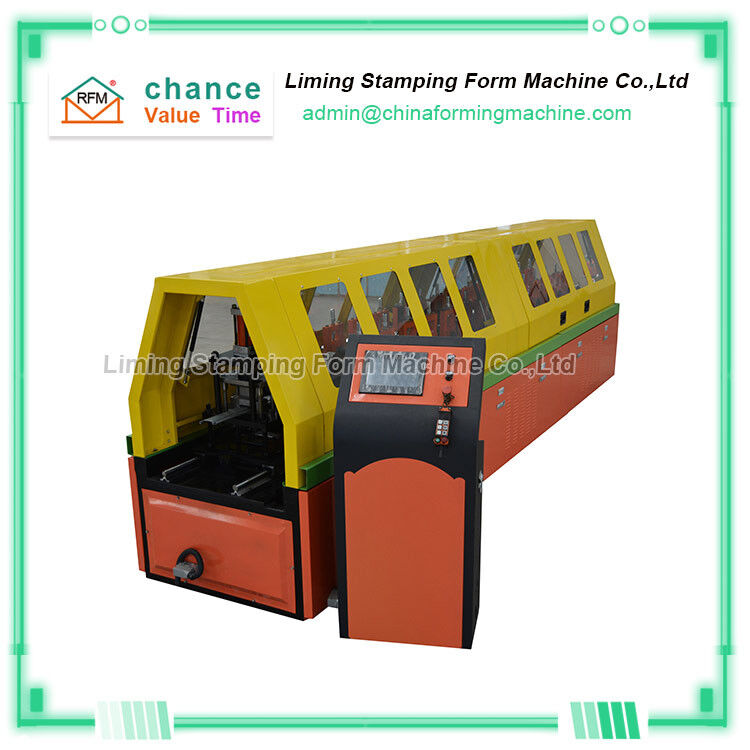

Automatic CNC Rolling Shutter Door Forming Machine
The Automatic CNC Rolling shutter door Forming Machine adopts automatic computer control and automatic production. It is an efficient production equipment.
Automatic CNC Rolling shutter door Forming Machine does not require too much labor. The staff enters the required worksheet data in the computer controller, and then presses a key to start. The machine will produce automatically. After reaching the set sheet length, the Automatic CNC Rolling shutter door Forming Machine will automatically cut. The cutting size is accurate and the error range is small. After the cutting is completed, the worker can arrange the finished board.
The cutting part of the Automatic CNC Rolling shutter door Forming Machine is neat, which is convenient for construction and installation.
Technical parameters of Automatic CNC Rolling Shutter Door Forming Machine
| No. | Item | parameter |
| 1 | Machine size | 6000*1500*1200mm |
| 2 | Machine weight | 2000kg |
| 3 | Machine power | 4kw |
| 4 | Hydraulic engine | 3KW |
| 5 | Roll speed | 8-15M/Min |
| 6 | Roll stations | 12 |
| 7 | Roller material | GCr15 |
| 8 | Effective width | 80mm |
| 9 | Feeding width | 92mm |
| 10 | Voltage | 380V 60Hz 3PH/Customized |
| 11 | Material thickness | 0.8-1.2mm/Customized |
| 12 | Control System | Schneider/Delta/Customized |
