| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD26 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Color: | Client's Request | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Production Capacity: | 8-15m/min | Warranty: | 2 Years |
| Voltage: | 380V 50Hz 3phases | Thickness: | 0.3-1.2 Mm |
| Machine Weigh: | 5T | Certification: | CE、BV、ISO |
| Shaft Material: | 45# High Grade Steel | Dimension(L*W*H): | 6m*1.2m*1.4m |
| Highlight: | Chrome steel Rolling Shutter Machine,6x1.2x1.4m Rolling Shutter Machine,45 Steel Rolling Shutter Machine |
||

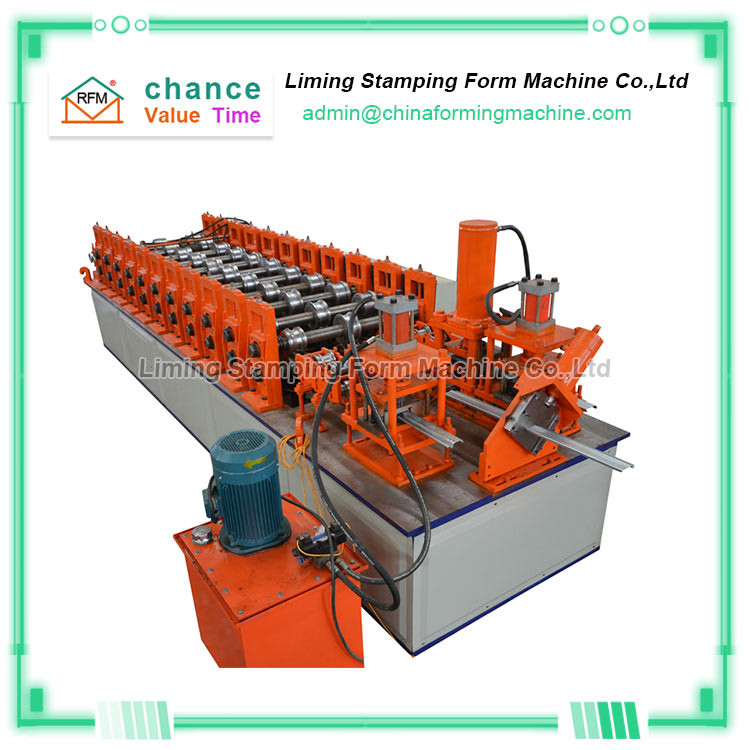

Can Produce 3 Different Sizes Of Rolling Shutter Forming Machine
Liming Stamping Form Machine Co., Ltd. independently researched and designed and Can produce 3 different sizes of rolling shutter forming machine. With the rapid economic development, the demand for construction and industrial doors is increasing. There is a special need to produce roller shutters of different sizes. Because it Can produce 3 different sizes of rolling shutter forming machine, it has good insulation effect, seamless connection, light weight, and beautiful appearance, which is recognized by the majority of users.
The market is getting bigger and bigger. According to market demand, our company has specially developed and produced Can produce 3 different sizes of rolling shutter forming machine.
The main forming part of the Can produce 3 different sizes of rolling shutter forming machine:
1. Feeding: Simple double-roll feeding and leveling treatment can make the strip smooth and accurately enter the forming roller table.
2. Forming roller table: The roller adopts bearing steel, which undergoes five procedures of cutting, lathe shaping, quenching, finishing, and chrome plating. Each procedure is strictly controlled to ensure the accuracy and service life of the roller.
Technical parameters of Can Produce 3 Different Sizes Of Rolling Shutter Forming Machine
| Item | Specification | |
| Type | Pre-painted steel coil & galvanized coils | |
| Material | Thickness | 0.4-0.7mm |
| Yield strength | 235-345Mpa | |
| Roller material | 45#Chrome steel | |
| Forming speed | 20-25m/min | |
| Speed adjusting mode | AC Frequency | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mould steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power | 4.0KW | |
| Hydraulic station motor power | 2.2 KW | |
