| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD29 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type: | Aluminum, Zinc, Galvanized Sheet | After-sales Service: | Online Support, Engineers Available To Service Machinery |
|---|---|---|---|
| Production Capacity: | 8-15m/min | Warranty: | 24 Months |
| Roll Material: | 45# High Grade Steel Chorme/Cr12/Cr15/45# | Thickness: | 0.3-1.2 Mm |
| Raw Material Width: | As Your Request Finish Shutter Door Slats Requirements | Certification: | CE、BV、ISO |
| Shaft Material: | 45# High Grade Steel | Hydraulic Motor: | 3kw/4kw/5.5kw |
| Highlight: | Galvanized Sheet Rolling Shutter Machine,140 Dustproof Rolling Shutter Machine |
||

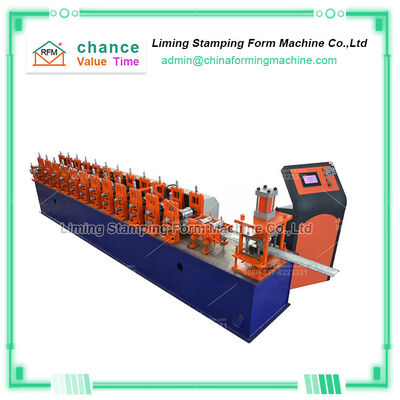

140 Dustproof And Fireproof Fast Rolling Shutter Door Forming Machine
The advantages of 140 dustproof and fireproof fast rolling shutter door forming machine:
1. The 140 dustproof and fireproof fast rolling shutter door forming machine has a high degree of automation: adopts an automatic control system, fixed speed, fixed length, accurate and reliable positioning control;
2. 140 dustproof and fireproof fast rolling shutter door forming machine template is of good quality: smooth and beautiful appearance, uniform paint pattern, high strength;
3. The main shaft and pressure roller of 140 dustproof and fireproof fast rolling shutter door forming machineare processed by CNC lathe, with high rolling precision and long service life.
140 dustproof and fireproof fast rolling shutter door forming machine is very suitable for transportation
The main body of the 140 dustproof and fireproof fast rolling shutter door forming machine is made of waterproof plastic, and is fixed on the container with a wire and angle iron with a diameter of 8mm.
Technical parameters of 140 Dustproof And Fireproof Fast Rolling Shutter Door Forming Machine
| Item No. | Description | Offered Specification |
| 1 | Rolling speed | 10-15m/min |
| 2 | Rolling thickness | 0.8-1.5 mm |
| 3 | Dimension | 12*1.7*1.5m |
| 4 | Effective width | 840 mm |
| 5 | Feeding coil width | 1000mm |
| 6 | Roller stations | About 15 stations |
| 7 | Roller material | 45 # forge steel |
| 8 | Shaft diameter | Φ70 mm |
| 9 | Transmission | By chain 1.2inch |
| 10 | Material of cutting | Cr 12 with quench HRC 65° |
