| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-RSD30 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type: | Aluminum, Zinc, Galvanized Sheet | Applicable Industries:: | Building Material Shops, Machinery Repair Shops |
|---|---|---|---|
| Production Capacity: | 10-25m/min | Warranty: | 24 Months |
| Roll Material: | 45# High Grade Steel Chorme/Cr12/Cr15/45# | Thickness: | 0.3-1.2 Mm |
| Dimension(L*W*H): | 5000mm*500mm*900mm | Certification: | CE、BV、ISO |
| Shaft Material: | 45# High Grade Steel | Hydraulic Motor: | 3kw/4kw/5.5kw |
| Highlight: | 11 Groups Shutter Door Roll Forming Machine,PLC Shutter Door Roll Forming Machine,11 Groups shutter door forming machine |
||

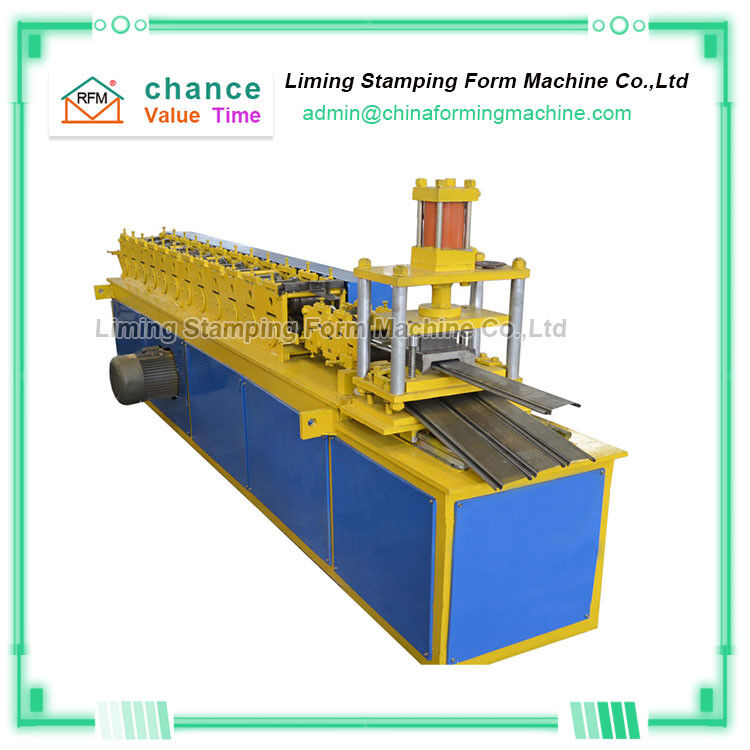

Online Punching Roller Shutter Door Forming Machine
he perforated roller shutter door produced by the Online punching roller shutter door forming machine is a type of door widely used in the roller shutter door. It has a stylish appearance and strong wind resistance. It is now a popular factory gate.
Most of the punching shutter doors produced by the Online punching roller shutter door forming machine adopt the upper bearing and lower guide method.
The Online punching roller shutter door forming machine uses high-quality materials and first-class processing technology to manufacture durable shutter doors.
Detailed description of the cutting system of the Online punching roller shutter door forming machine:
①Guide mechanism: make the knife holder cut smoothly without deformation.
②Cast iron tool holder: obvious shock absorption effect and strong impact resistance.
③Blade material: Cr12Mov cutting life exceeds one million times.
④Rear scissor frame: Q235 steel plate, annealing treatment after rough milling and finishing.
Technical parameters of Online Punching Roller Shutter Door Forming Machine
| Material Spec | colored steel sheet, galvanized steel sheet |
| main motor power | 4.0 kw |
| forming speed | 8-10m/min |
| Diameter of roller | 70 millimeter |
| Thickness of Coil Sheet | |
| 0.3-0.8 millimeter | |
| Hydraulic station pressure | 3 kw |
| Hydraulic pressure | 10 - 12Mpa |
| Total Weight | about 4.0ton |
| Voltage | 380 volt |
| Roll stand | 10/11 groups |
| PLC | Computer adopt PLC, Mitsubishi FX-IS series |
| Dimension | 6.0m*1.3m*1.5m |
| Roller material | high grade No.45 forged steel, plated hard chrome onthe surface of roller with thickness 0.05 millimeter |
| Frequency converter | containing |
| Computer operating screen | MT6056 from Taiwan |
| Rotary Encoder | OMRON |
| Material of cutter | Cr12 |
