| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity:: | 30-120m Per Min | Work Pressure:: | 11-120mpa |
|---|---|---|---|
| Power:: | 15kw | Warranty Of Core Components:: | 2 Years |
| Cutting Width:: | 50-1200 | Design System:: | Vertex BD |
| Certification: | CE、BV、ISO | Control System:: | Automatic /human Interface Control |
| Weight: | 12000KG |

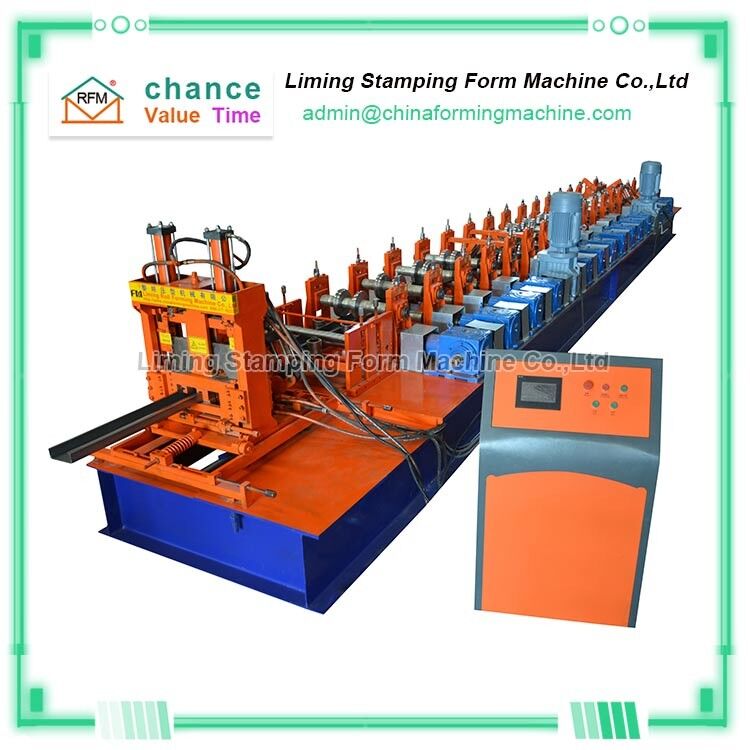

Fully Automatic Galvanized C Purlin Roll Forming Machine
Generally speaking, for the "Fully automatic galvanized C purlin roll forming machine", we only use the conventional thickness of 1.5 to 3.0mm.
But sometimes we do need a thickness of 3 to 5.0 mm.
According to the demand, we designed this "Fully automatic galvanized C purlin roll forming machine"
The C purlin strip of the "Fully automatic galvanized C purlin roll forming machine"has good compressive strength and flatness; automatic measurement, cutting and perforation; high level of automation and convenient installation.
Technical parameters of Fully Automatic Galvanized C Purlin Roll Forming Machine
| Fully automatic galvanized C purlin roll forming machine | |||||
| NO. | Item | Unit | Parameter | Remark | |
| Material | Type | galvanized sheet,strip steel,etc | |||
| 1 | Strength of material sheet | Map | ≥350 | ||
| Thickness of material sheet | mm | 1~3 | Adjustable | ||
| 2 | Profile sizes | mm | As the profile pictures shows | Adjustable | |
| 3 | Production speed | m/min | Forming speed:about 6m/min | Adjustable | |
| 4 | Material of roller | GCr15 quenching treatment | |||
| 5 | Drive type | Gearbox driven | |||
| 6 | Motor Power | kw | About 68Kw | ||
| 7 | Electric control system | PLC variable frequency control | |||
| 8 | Dimensions(Length*width*height) | m | 35X4X3.9 | ||
