| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin7 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Farms, Construction Works | Voltage:: | 380/220/415v Customized |
|---|---|---|---|
| After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Warranty Of Core Components:: | 2 Years |
| Product Name:: | High Quality Stainless Steel C Shaped Purlin Steel Roll Forming Machine | Certification: | CE、BV、ISO |
| Control System:: | Automatic /human Interface Control | Dimension(L*W*H):: | 9.5*1.5*1.4M |

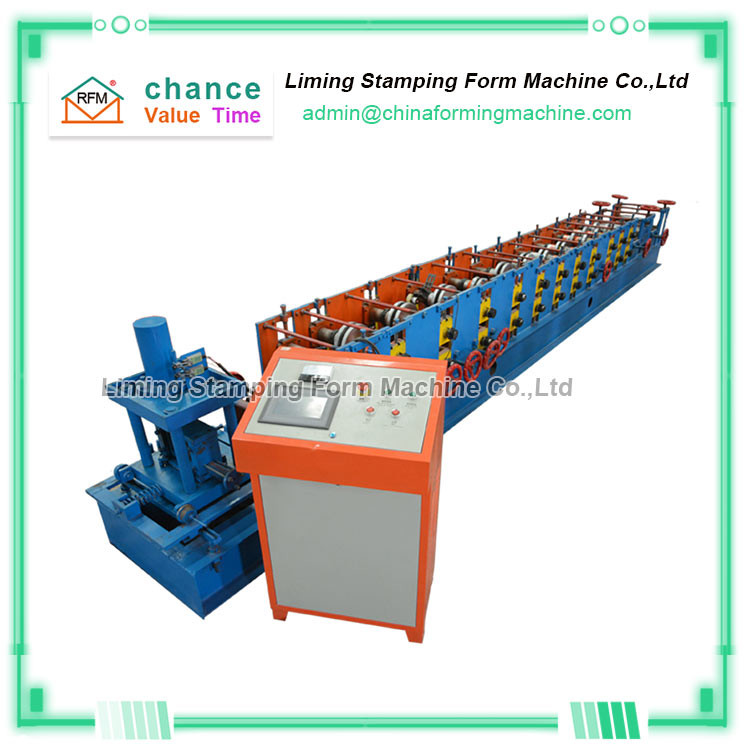

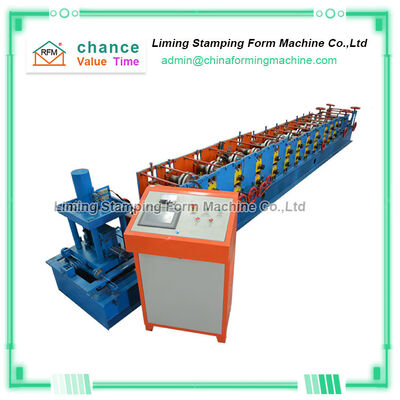

High Quality Stainless Steel C Shaped Purlin Steel Roll Forming Machine
"High quality stainless steel C shaped purlin steel roll forming machine" adopts automatic fixed-length cutting, automatic punching and other methods, with high automation and quick and convenient installation.
"High quality stainless steel C shaped purlin steel roll forming machine" is a single-roll forming unit that can produce C shaped purlin units of various specifications.
"High quality stainless steel C shaped purlin steel roll forming machine" is 9 meters long, 1.1 meters wide, and 1.6 meters high; the net weight is 6 tons.
The frame of the "High quality stainless steel C shaped purlin steel roll forming machine" is made of 350H steel, the main shaft is made of 45# round steel, and the wheels are made of bearing steel and have been quenched and tempered.
Technical parameters of High Quality Stainless Steel C Shaped Purlin Steel Roll Forming Machine
| 1 | Profile Size | 100-300 |
| 2 | Suitable Raw Material | 0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request |
| 3 | Under Frame | 400 H-beam |
| 4 | Sidewall | 20mm |
| 5 | Connect Bar | 25mm, zinc plated |
| 6 | Roller | Gcr15, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway |
| 7 | Shaft | 80mm, solid, finish turning, cylindrical grinding, with keyway |
| 8 | Forming Stations | 15 |
| 9 | PLC | DELTA, TAIWAN |
| 10 | Main Motor | 15kw, Lichao, Shanghai, with reducer |
| 11 | Hydraulic Pump station | 5.5 kw |
| 12 | Cutting blade | Cr12Mov, quenching 58-62°, double oil cylinder |
| 13 | Oil paint | National standard grey |
| 14 | Computer screen | DELTA, TAIWAN |
| 15 | Chain | double 2inch |
