| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin8 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Farms, Construction Works | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Warranty Of Core Components:: | 2 Years |
| Core Components:: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Certification: | CE、BV、ISO |
| Control System:: | Automatic /human Interface Control | Work Pressure:: | 16 MPA |

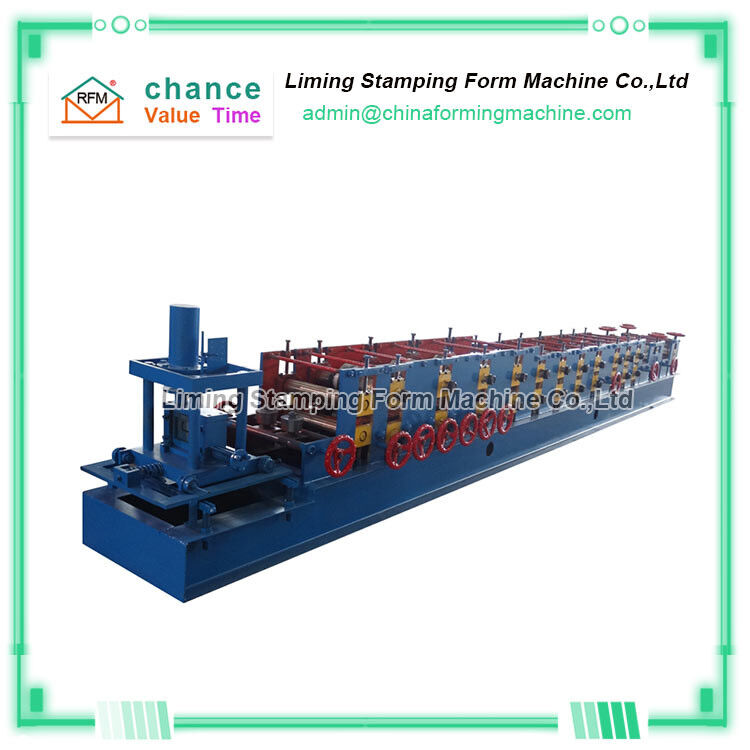

Well Stocked C Shaped Purlin Steel Roll Forming Machine
The C-shaped purlins produced by "Well stocked C shaped purlin steel roll forming machine" can be used as the main load-bearing structure for factories and warehouses, warehouses, hangars, hangars, exhibition halls, theaters, stadiums, and large and large factories. Medium-sized industrial and civil buildings.
The motor power of Liming Stamping Form Machine Co.,Ltd "Well stocked C shaped purlin steel roll forming machine" is 11KW-6 poles, and the output power is 8-12 meters per minute.
The front leveling device of the leveling device of the "Well stocked C shaped purlin steel roll forming machine" uses two upper and lower leveling devices. The back row is one to one.
"Well stocked C shaped purlin steel roll forming machine" adopts external adjustment form, single-sided adjustment, fast adjustment speed and simple operation.
Technical parameters of Well Stocked C Shaped Purlin Steel Roll Forming Machine
| No. | Well stocked C shaped purlin steel roll forming machine | |
| Sample | ||
| 1 | Profile Size | 100-300 |
| 2 | Suitable Raw Material | 0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request |
| 3 | Under Frame | 400 H-beam |
| 4 | Sidewall | 20mm |
| 5 | Connect Bar | 25mm, zinc plated |
| 6 | Roller | Gcr15, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway |
| 7 | Shaft | 80mm, solid, finish turning, cylindrical grinding, with keyway |
| 8 | Forming Stations | 15 |
| 9 | PLC | DELTA, TAIWAN |
| 10 | Main Motor | 15kw, Lichao, Shanghai, with reducer |
| 11 | Hydraulic Pump station | 5.5 kw |
| 12 | Cutting blade | Cr12Mov, quenching 58-62°, double oil cylinder |
| 13 | Oil paint | National standard grey |
| 14 | Computer screen | DELTA, TAIWAN |
| 15 | Chain | double 2inch |
