| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin10 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Farms, Construction Works | Processing Custom Galvanized C Shaped Purlin Steel Roll Forming Machine: | 10-15m/min |
|---|---|---|---|
| After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Warranty Of Core Components:: | 2 Years |
| Power:: | 11kw | Certification: | CE、BV、ISO |
| According To The Model: | 40Cr | Weight: | 5.3t |
| Highlight: | 11kw Purlin Roll Forming Machine,purlin making machine,C Shaped Purlin Roll Forming Machine |
||

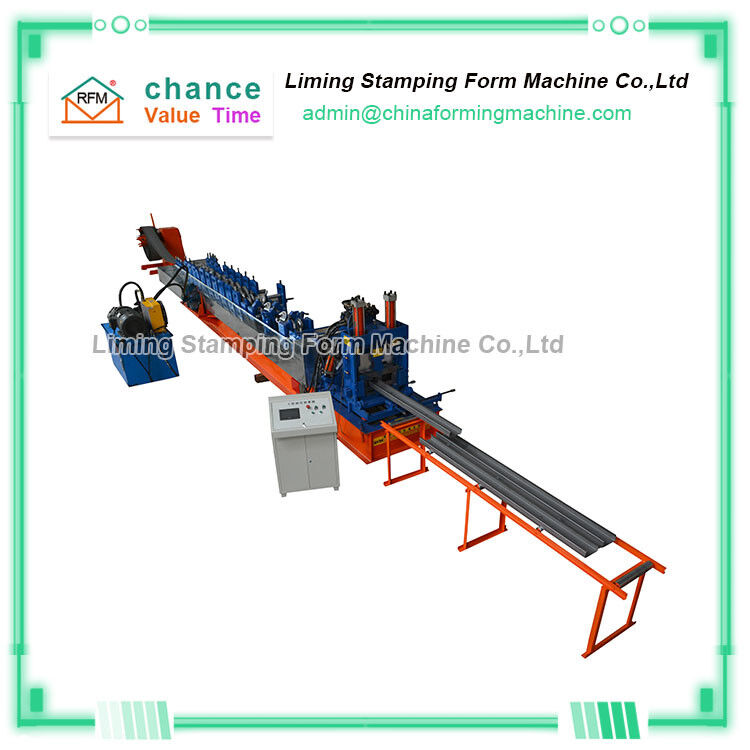

Processing Custom Galvanized C Shaped Purlin Steel Roll Forming Machine
Application scope of "Processing custom galvanized C shaped purlin steel roll forming machine":
"Processing custom galvanized C shaped purlin steel roll forming machine"can be used in factory buildings, warehouses, hangars, hangars, exhibition halls, theaters, stadiums, market flower sheds, etc.
Advantages of "Processing custom galvanized C shaped purlin steel roll forming machine":
1. "Processing custom galvanized C shaped purlin steel roll forming machine" is controlled by PLC, and various safety protection measures have been taken during the normal production process.
2."Processing custom galvanized C shaped purlin steel roll forming machine" bed is steel welded parts. And tempered to eliminate internal stress and avoid body deformation.
3."Processing custom galvanized C shaped purlin steel roll forming machine" forming frame is cast iron structure and tempered. High strength and long service life.
4. The material of the forming mold of "Processing custom galvanized C shaped purlin steel roll forming machine" is GCr15, and the hardness after quenching is HRC56-62℃.
Technical parameters of Processing Custom Galvanized C Shaped Purlin Steel Roll Forming Machine
| Type | Roll former for C PURLINE |
| Thickness | 1.6mm-3.15mm |
| Frame Design | Wall-plate-frame-design /New-stand-frame-design |
| Roll Stages | 13 stages |
| Material Of Forming Roller | GCr15, CNC lathes, Heat Treatment, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
| Main Motor Power | 18.5KW |
| Max. Line Speed of Roll Former | 12 m/min (Higher speed is available, depends on the specification required by the buyer) |
| Hydraulic Group Power | 15 KW |
| Material of Cutting Blade | Cr12, hear treatment |
| Electric Standard | 380V /50Hz/3PH or as per customer's requirements |
| Machine Dimensions | 11760mm×1980mm×1630mm |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer’s requirements |
