| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin11 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Key Selling Points:: | Automatic | Processing Custom Galvanized C Shaped Purlin Steel Roll Forming Machine: | 10-15m/min |
|---|---|---|---|
| Delivery Time:: | 30 Working Days | Warranty Of Core Components:: | 2 Years |
| Power:: | 11kw | Certification: | CE、BV、ISO |
| Cutting:: | Hydraulic Cutting | Weight: | 5.3t |
| Highlight: | T3.15mm C Channel Making Machine,12m/Min C Channel Making Machine |
||

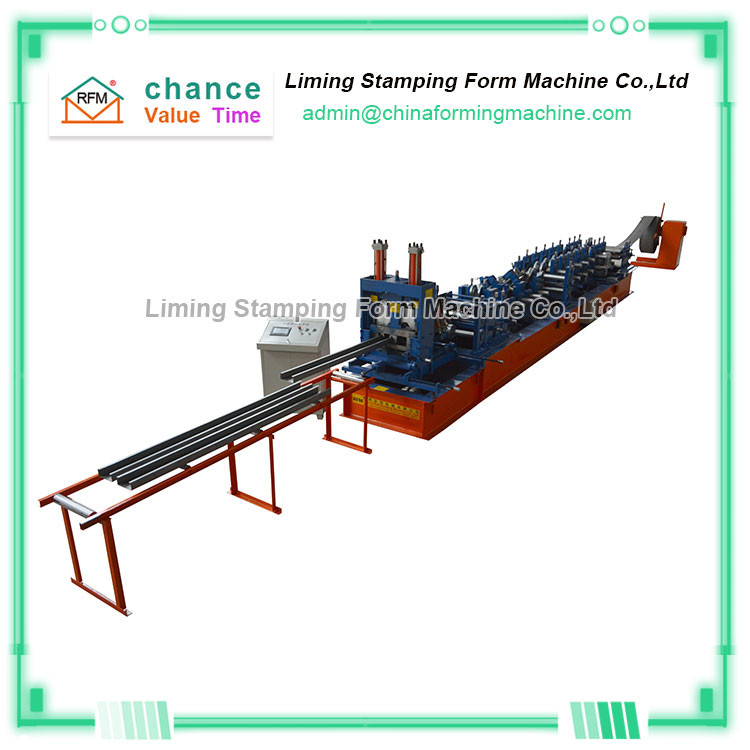

European Standard C And Z Shaped Purlin Interchangeable Roll Forming Machine
Fully automatic and semi-automatic "European Standard C and Z shaped purlin Interchangeable Roll Forming Machine" use the same set of equipment.
The "European Standard C and Z shaped purlin Interchangeable Roll Forming Machine" can produce C strips of various specifications through automatic and manual simple stepless adjustment.
When changing specifications, the "European Standard C and Z shaped purlin Interchangeable Roll Forming Machine" does not need to change the forming roll.
The production process o f"European Standard C and Z shaped purlin Interchangeable Roll Forming Machine" adopts automatic control method, which can automatically punch, cut and shape according to the input length, longitudinal hole distance, quantity and other parameters.
The "European Standard C and Z shaped purlin Interchangeable Roll Forming Machine" consists of a guide device, a straightening device, two hydraulic punching devices, a hydraulic cutting device, a quick-change roll forming machine, an electronic control system and a hydraulic system.
Technical parameters of European Standard C And Z Shaped Purlin Interchangeable Roll Forming Machine
| Type | Roll former for C PURLINE |
| Thickness | 1.6mm-3.15mm |
| Frame Design | Wall-plate-frame-design /New-stand-frame-design |
| Roll Stages | 13 stages |
| Material Of Forming Roller | GCr15, CNC lathes, Heat Treatment, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
| Main Motor Power | 18.5KW |
| Max. Line Speed of Roll Former | 12 m/min (Higher speed is available, depends on the specification required by the buyer) |
| Hydraulic Group Power | 15 KW |
| Material of Cutting Blade | Cr12, hear treatment |
| Electric Standard | 380V /50Hz/3PH or as per customer's requirements |
| Machine Dimensions | 11760mm×1980mm×1630mm |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer’s requirements |
