| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin13 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Key Selling Points:: | Automatic | Processing Custom Galvanized C Shaped Purlin Steel Roll Forming Machine: | 10-15m/min |
|---|---|---|---|
| Work Pressure:: | 20p | Voltage: | 380V,50Hz,3Ph |
| Control Parts:: | Delta PLC | Certification: | CE、BV、ISO |
| Dimension(L*W*H):: | 65008130081400mm | Thickness:: | 1.5-3mm |
| Highlight: | 30m/Min Cz Purlin Machine,Cz Purlin Machine |
||

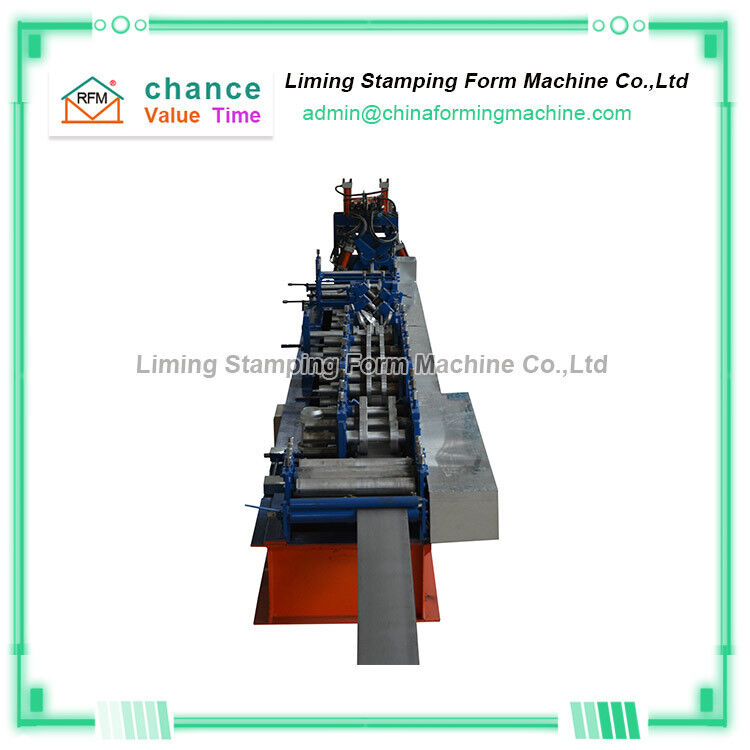

Q235 Material C And Z Interchangeable Purlin Machine
The launch of "Q235 material C and Z interchangeable purlin machine" is a revolution in the open source and throttling project of the steel structure industry.
The main functions o f"Q235 material C and Z interchangeable purlin machine" are as follows:
First of all, "Q235 material C and Z interchangeable purifier" does not need to replace the cutting blade.
The second is the quick model change of "Q235 material C and Z interchangeable purlin machine", which can be changed within three minutes;
The adjustability of the third "Q235 material C and Z interchangeable purlin machine", the web, flange and flange edge can be completed, and the unit can be adjusted in millimeters;
The fourth is"Q235 material C and Z interchangeable purlin machine" CZ three-step conversion between two models and sizes;
Fifth, the coaxial design of "Q235 material C and Z interchangeable purlin machine"reduces the problem of uneven height on both sides of the broken shaft.
Technical parameters of Q235 Material C And Z Interchangeable Purlin Machine
| Item | Parameters |
| Coil Thickness(mm) | 1.5~3 |
| Max Speed(m/min) | 30 |
| Roll standard station (pcs) | 18 |
| Main Motor(KW) | 22kw (Hydraulic Motor ) |
| Main Shaft(mm) | 80mm |
| Shaft materials | 40Cr |
| Roller Materials | GCr15 |
| Cutting Way | Hydraulic Cutting (7.5KW) |
| Cutting Blade Materials | Cr12MoV |
| Hole Punching | 3 sets |
| Control System | PLC control (Xinjie) |
| Size Change | PLC control / Press Button |
| C Z Interchange | PLC control / Reverse roll |
