| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin19 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Work Pressure:: | 16Mpa | Voltage:: | 380V.50HZ.3Phase |
|---|---|---|---|
| Roller Station:: | 18 Stations+ Straightening Rollers | Controlling Mode:: | PLC+Touch Screen |
| Roll Material:: | 45# High Grade Steel | Certification: | CE、BV、ISO |
| Dimension(L*W*H):: | 7000*1000*1500 | Thickness:: | 1.5-3mm |
| Highlight: | Interchangeable Z Purlin Machine,ISO C Channel Roll Forming Machine,Interchangeable C Channel Roll Forming Machine |
||

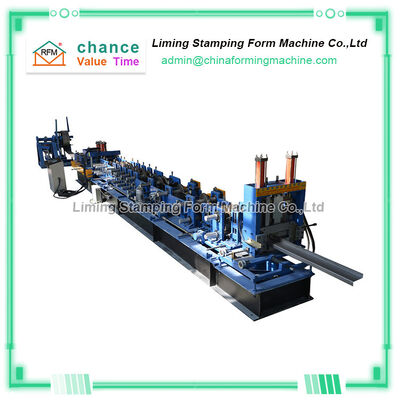

Automatic Fixed Length Cutting C And Z Interchangeable Purlin Forming Machine
The C shaped purlin steel produced by the "Automatic fixed length cutting C and Z interchangeable purlin forming machine" belongs to the economical section (other cold-formed thin-walled steel, section steel plate, etc.). With a reasonable cross-sectional shape, they can make steel more effective and improve acceptability.
The C shaped purlin steel produced by the "Automatic fixed length cutting C and Z interchangeable purlin forming machine" is different from ordinary I-shaped steel.
The C shaped purlin steel produced by the "Automatic fixed length cutting C and Z interchangeable purlin forming machine" is made of H-shaped steel wing embroidery, and its inner and outer surfaces are usually parallel, which is convenient for connecting high-strength screws and other components.
The C-shaped steel size series produced by the "Automatic fixed length cutting C and Z interchangeable purlin forming machine" is reasonable, the model is complete, and the design selection is easy.
Technical parameters of Automatic Fixed Length Cutting C And Z Interchangeable Purlin Forming Machine
| Items | Specifications | Automatic fixed length cutting C and Z interchangeable purlin forming machine |
| Material of coil | Purlin Width | 100mm-300mm |
| Purlin Height | 40-80mm | |
| Material Thickness | 1.5-3mm | |
| Uncoiler | 5 tons manual | |
| Leveling | 7Rollers | 3upper rollers, |
| 4 lower rollers | ||
| Hydraulic | Hydraulic Power | 5.5kw |
| system | Punching | Hydraulic pre-punching |
| Punching mould material | Cr12Mov | |
| Cutting | Hydraulic pre-cutting | |
| Blade Material | Cr12Mov | |
| Tolerance | +-1.5mm | |
| Forming system | Rolling Speed | 10-15m/min |
| Roller Stations | 16 stations | |
| Roller Material | Gcr15 quenched, | |
| hardness 55-58° | ||
| Shaft material | 45#steel | |
| Main Motor Power | 18.5kw | |
| Way Of Drive | chain | |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase(customized) |
| PLC Control System | Panasonic |
