| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin20 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type:: | Steel | Place Of Origin:: | Hebei, China |
|---|---|---|---|
| Voltage:: | 38V 50Hz 3phases | Controlling Mode:: | PLC+Touch Screen |
| Roll Material:: | 45# High Grade Steel | Certification: | CE、BV、ISO |
| Dimension(L*W*H):: | 7000*1000*1500 | Thickness:: | 1.5-3mm |
| Highlight: | C And Z Purlin Roll Forming Machine,Purlin Punching Forming Machine,C And Z Punching Forming Machine |
||

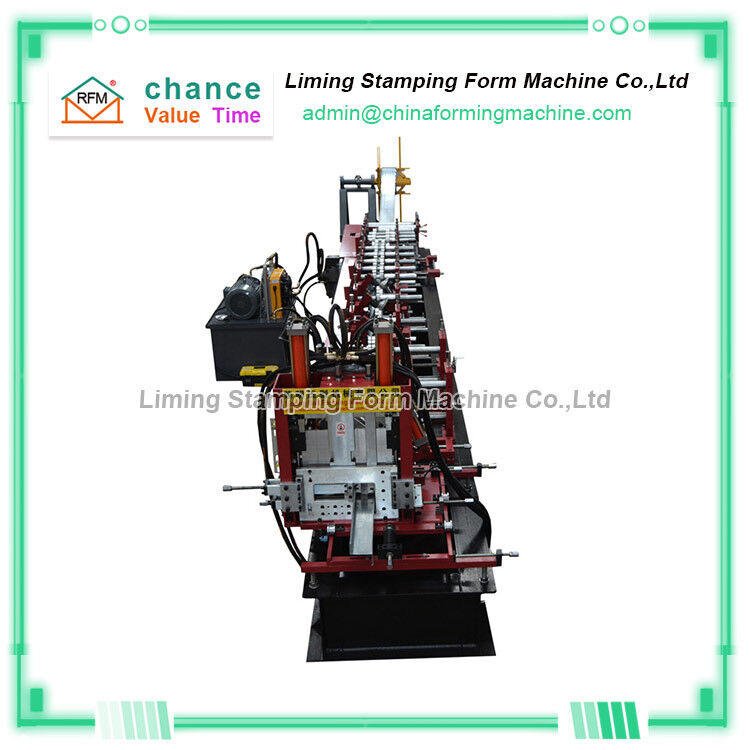

C And Z Interchangeable Purlin Automatic Punching Forming Machine
The C shaped purlin steel produced by "C and Z interchangeable purlin automatic punching forming machine" has a reasonable size series, a complete model and an easy-to-select design.
"C and Z interchangeable purlin automatic punching forming machine" has 18 types of composition (one of which is the waist height forming 87-95 degree arbitrary adjustable roller set) is equipped with 13 sets of CZ interchange modules, which can be interchanged 180 degrees . Button to change the size.
The production process of "C and Z interchangeable purlin automatic punching forming machine" adopts automatic control method, which can automatically punch, cut and shape according to input parameters such as pur length, longitudinal hole distance, quantity and so on.
Leveling system of "C and Z interchangeable purlin automatic punching forming machine": upper three, lower four + two feeds, full solid shaft quenching and tempering heat treatment and polishing plating.
Technical parameters of C And Z Interchangeable Purlin Automatic Punching Forming Machine
| C and Z interchangeable purlin automatic punching forming machine | ||||
| Un-coiler | Max Capacity: | 5T | ||
| Inner diameter of coil: | ≤508mm | |||
| Type: | Manual or Automatic | |||
| Main Forming System | Thickness of sheet : | 3mm | ||
| Material : | GI sheet coil or Colored sheet coil | |||
| Roller material : | Cr12 | |||
| Surface of Roller : | Heat treatment HRC58-60 | |||
| Diameter of main shaft : | 75mm #45 steel, heat treat modulation | |||
| Forming station : | 13 stations. | |||
| Transmission : | by chain and gear | |||
| Measuring accuracy : | +/- 0.5 mm/M | |||
| Output : | 8-10 Tons per shift (8 hrs.). | |||
| Speed : | 10-20m/min | |||
| Hydraulic Cutting Device | Cutting way : | Tracking (Flying) | ||
| Oil pump station : | 1set | |||
| Motor power of Oil pump station : | 7.5kw with cooling system. | |||
| Cutting mould : | 1 sets. | |||
| Material of blade : | CR12 with heat treatment HRC60-62 | |||
