| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin24 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type:: | Steel | Applicable Industries:: | Building Material Shops, Construction Works |
|---|---|---|---|
| Pre-cutting System:: | Hydraulic Cutting With Hand Cutting | Voltage:: | 380V/50HZ 3Phase(as Customer's Request) |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Driving Method:: | Electrical Motor Or Hydraulic Driving | Dimension(L*W*H):: | 3000*800*1400mm |
| Highlight: | 25m/Min Purlin Roll Forming Machine,Conversion Model Purlin Roll Forming Machine |
||

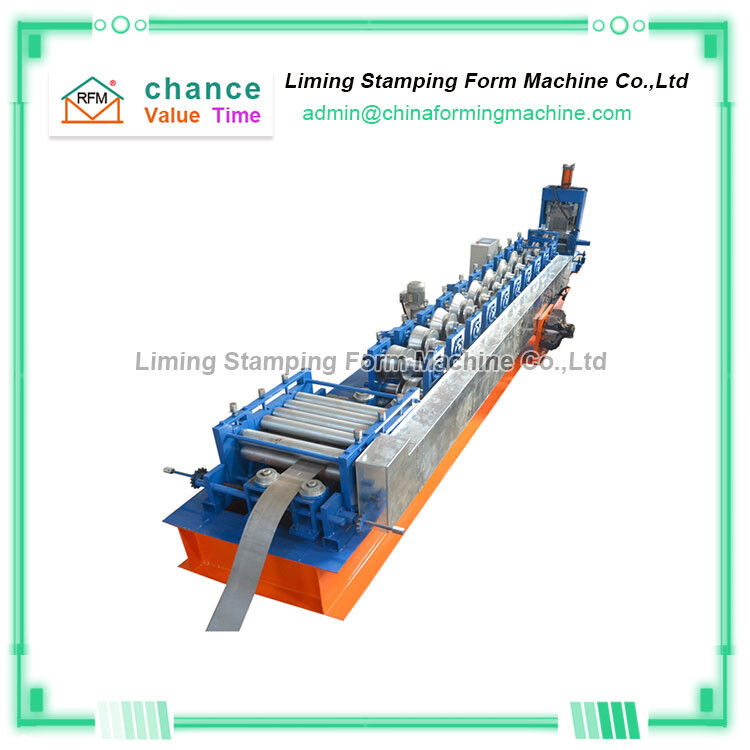

80-300 Conversion Model C And Z Interchangeable Purlin Forming Machine
"80-300 conversion model C and Z interchangeable purlin forming machine" has a wide range of applications and can be applied to: petroleum industry, chemical industry, textile industry, aviation industry, construction industry and machinery industry.
"80-300 conversion model C and Z interchangeable purlin forming machine" has a beautiful appearance and production efficiency (production speed reaches 25m/min).
"80-300 conversion model C and Z interchangeable purlin forming machine" is a customized machine that can be customized according to your needs. We will draw a design drawing according to your requirements and send it to you in CAD format for confirmation. After confirmation, we can start production.
After-sales questions about "80-300 conversion model C and Z interchangeable purlin forming machine" :
1. Create your own"80-300 conversion model C and Z interchangeable purlin forming machine" file. The file will be sent to you with the machine.
2. Visit the "80-300 conversion model C and Z interchangeable purlin forming machine" regularly every month, we will help you solve the problem in time.
3. The company has its own after-sales service team, which can go to your location to train your employees and solve all problems for you.
Technical parameters of 80-300 Conversion Model C And Z Interchangeable Purlin Forming Machine
1. The specification of the rolling production (mm): 80-300
2. Can change size to 150 mm,180 mm,200 mm,220 mm,250 mm
3. Raw material thickness from 1.6-2.5mm
4. Cut to any length by PLC control
5. The speed of the roll-in: 10 m/min
6. The number of the roller: 20
7. The material of the roller: steel Cr15 to be quenched as a whole
8. The material of the principal axis: use the excellent steel No.45 to process.
9. The power of the principal electric motor: 11kw
10. Hydrodynamic station cut: 7.5kW
11. Drive-by-wire system: The whole machine uses the PLC control
12. The size of the shape equipment: 10.3×1.5×1.2 (see the appendix 2)
12. The gross weight of the equipment: 10 T
