| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin25 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| After-sales Service Provided:: | Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Engineers Available To Service Machinery Overseas | Applicable Industries:: | Building Material Shops, Construction Works |
|---|---|---|---|
| Pre-cutting System:: | Hydraulic Cutting With Hand Cutting | Voltage:: | 380V/50HZ 3Phase(as Customer's Request) |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Control System:: | Mitsubishi/ Siemens PLC | Product:: | Purlin Roll Forming Machine |
| Highlight: | Hydraulic Motor C&Z Purlin Forming Machine,380V C&Z Purlin Forming Machine |
||

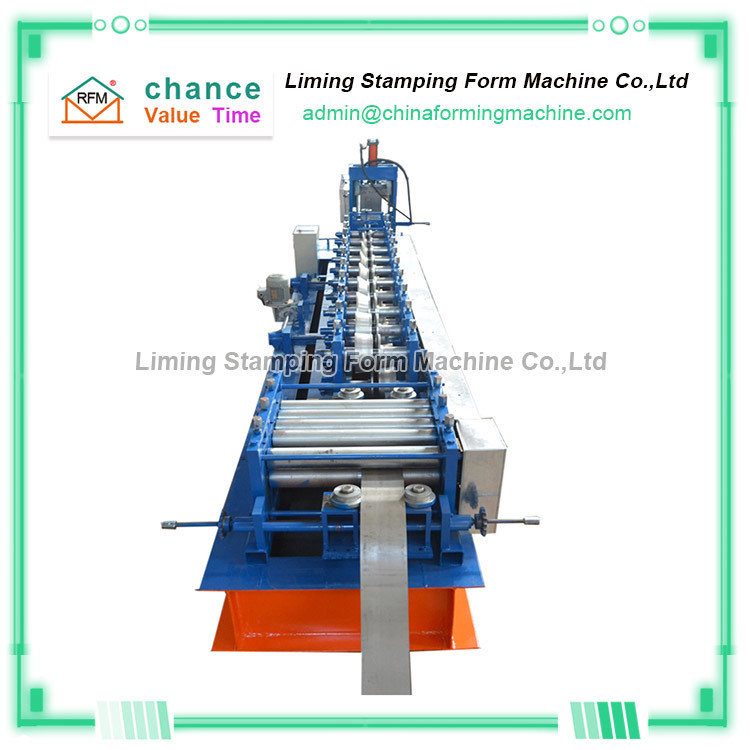

Fast Hydraulic Motor C And Z Interchangeable Purlin Forming Machine
Suitable materials for "Fast hydraulic motor C and Z interchangeable purlin forming machine": Q195, Q235 hot-rolled steel strip or hot-rolled galvanized steel strip (1.5-3.0mm)
Production speed of "Fast hydraulic motor C and Z interchangeable purlin forming machine": high speed 25 m/min (according to the number of holes)
"Fast hydraulic motor C and Z interchangeable purlin forming machine" product specifications: C-shaped steel width (80-300mm), Z-shaped steel width (120-300mm) can be changed at will.
"Fast hydraulic motor C and Z interchangeable purlin forming machine" can be specially designed and manufactured according to user requirements, while providing users with one-stop service of color steel equipment guidance, production, installation, commissioning and maintenance.
Technical parameters of Fast Hydraulic Motor C And Z Interchangeable Purlin Forming Machine
| Material of Coil | Material Thickness | 1.5-3.0mm |
| Decoiler | Weight | 3 ton manual decoiler |
| Main Forming | Rolling Speed | 10-12 m/min |
| Roller Stations | About 15 stations forming | |
| Roller Material | Gcr15 Steel with quenching | |
| Shaft Material | 45# Steel Diameter 75mm shaft | |
| Maim Motor Power | 11 kw | |
| Hydraulic cutting Power | 5.5 kw | |
| Hydraulic Cutting | Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | ±1.5mm | |
| Cutting blade | 1 set of cutting blade | |
| Electrical Control System | Electric Source | 380V, 50HZ, 3phase |
| Control System | PLC with touch screen Japanese Panasonic and Yaskawa | |
| Brand | ||
| Weight | About 6 ton | |
| Way Of Drive | Chain | |
| Size of machine(Length*Width*Height) | 8m*0.88 m* 1.0m |
