| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin27 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Material:: | Galvanized Steel Purlin | Core Components:: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
|---|---|---|---|
| Work Pressure:: | Customize | Voltage: | 380V/50HZ |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Roller Speed:: | 15-20 M/min | Product:: | Purlin Roll Forming Machine |
| Highlight: | Button Type Purlin Forming Machine,Interchangeable Purlin Forming Machine |
||

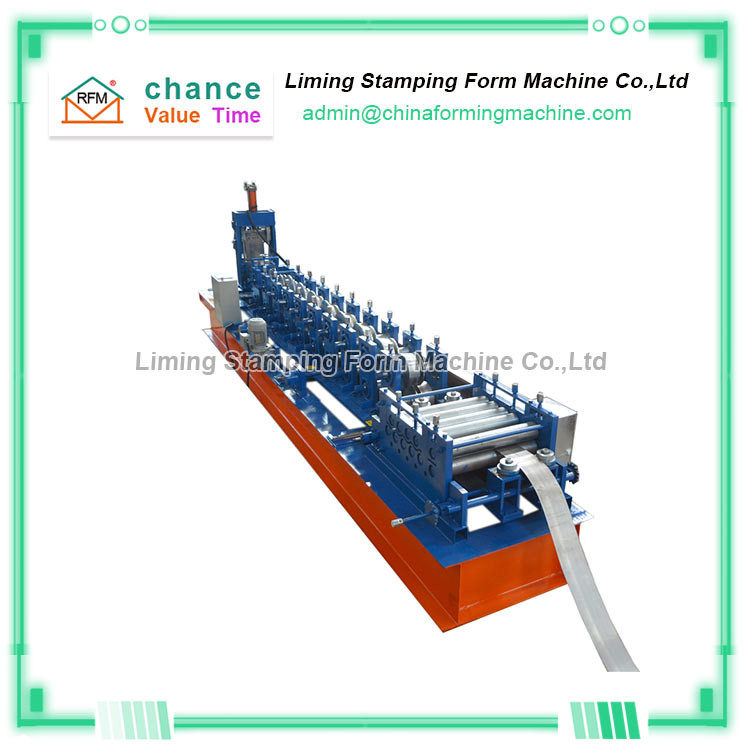

Button type convenient C and Z interchangeable purlin forming machine
"Button type convenient C and Z interchangeable purlin forming machine" can realize the production and transformation of C&Z two specifications and models.
"Button type convenient C and Z interchangeable purlin forming machine" button-type operation, can achieve any model change of 80-300mm within one minute, and reach the product change specification you need. The forming cutter can realize any stepless cutting from 80 to 300, without changing the cutter.
"Button type convenient C and Z interchangeable purlin forming machine" automatic centering adjustment of the feed inlet, fixed-length cutting, high precision, fast forming speed, saving labor costs.
"Button type convenient C and Z interchangeable purlin forming machine" only need to adjust the parameter position on the scale when changing the model, without tool measurement and manual estimation.
Technical parameters of Button type convenient C and Z interchangeable purlin forming machine
| No. | Item | parameter |
| 1 | Machine size | 11500*2100*1800mm |
| 2 | Machine weight | 14000kg |
| 3 | Machine power | 22kw |
| 4 | Hydraulic engine | 7.5kw |
| 5 | Roll speed | 15-25M/Min |
| 6 | Roll stations | 16 |
| 7 | Roller material | 45# steel, CNC lathes, hard Chrome Coated |
| 8 | Effective width | C80-300mm,Z140-300mm |
| 9 | Feeding width | / |
| 10 | Voltage | 380V 50Hz 3PH/Customized |
| 11 | Material thickness | 1.5-3.0mm/Customized |
| 12 | Control System | Schneider/Delta/Customized |
