| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin29 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Material:: | Galvanized Steel Purlin | Core Components:: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
|---|---|---|---|
| Control System:: | PLC+Drive | Voltage: | 380V/50HZ |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Dimension(L*W*H):: | 10200x1350x1750mm | Cutting Blade Material:: | Cr12Mov |
| Highlight: | 7x1x1.5m Purlin Roll Forming Machine,380V Wall Beam Forming Machine,7x1x1.5m Beam Forming Machine |
||

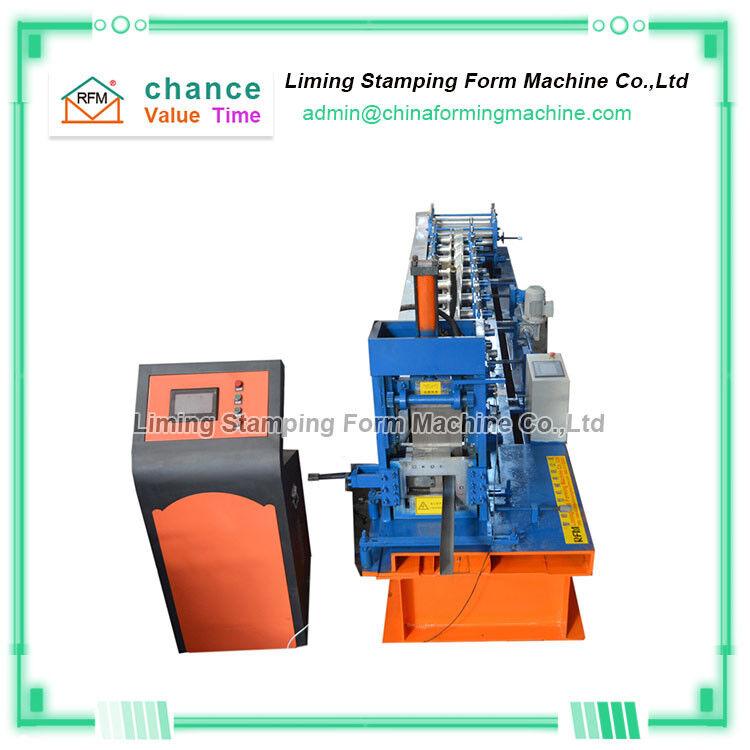

Promise Post Cutting C Shaped Purlin Roll Forming Machine
"Promise post cutting C shaped purlin roll forming machine" can be used for purlins / wall beams of steel structure buildings, and can also be assembled into light roof trusses/brackets and other building components.
"Promise post cutting C shaped purlin roll forming machine" can also be used for columns, beams and cross arms in light industrial machinery manufacturing.
"Promise post cutting C shaped purlin roll forming machine" has the characteristics of pressure resistance, no deformation, smooth cutting surface, corrosion resistance and wear resistance.
The forming roll of the "Promise post cutting C shaped purlin roll forming machine" : GCr15 bearing steel finishing, heat treatment and hard chrome plating, wire drawing and polishing.
Technical parameters of Promise Post Cutting C Shaped Purlin Roll Forming Machine
| Machine sizes: | 7*1*1.5m | Roller diameter: | Φ80mm |
| Speed: | 8-15m/min | Power: | 22kw |
| Molding row: | 12-15 rollers | Die Material: | GCR12MOV (HCR58-62) |
| Machine weight: | 7T | Transmission type: | Chain drive |
