| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin30 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Material:: | Galvanized Steel Purlin | Production Capacity:: | 15-20m/min |
|---|---|---|---|
| Control System:: | PLC+Drive | Thickness Of Coil Sheet:: | 1-3mm |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Dimension(L*W*H):: | 10200x1350x1750mm | Cutting Blade Material:: | Cr12Mov |
| Diameter Of Shaft:: | 70 Mm | Controlling System:: | Famous PLC Computer Control |
| Highlight: | C U Z Purlin Roll Forming Machine,Galvanized Steel Purlin Roll Forming Machine,Steel c z purlin forming machine |
||

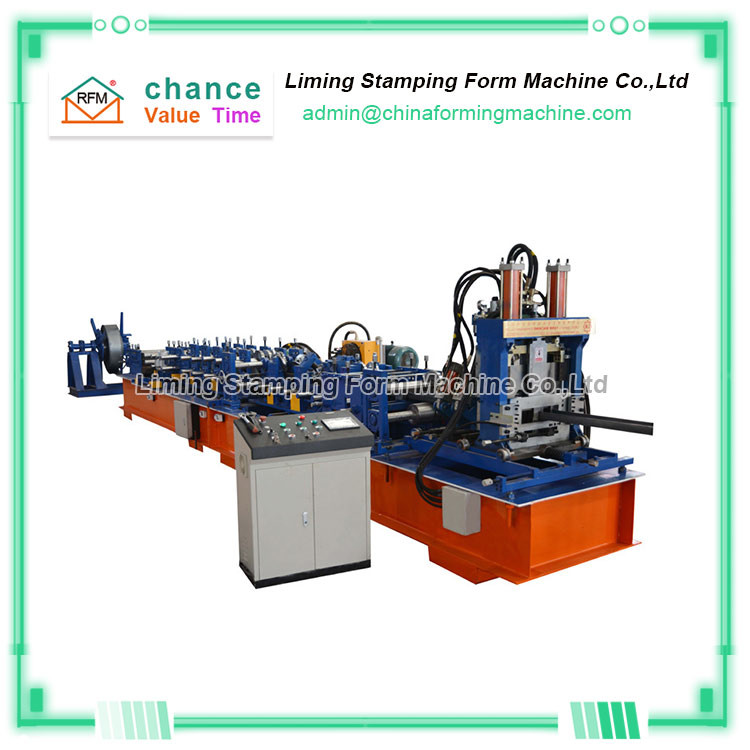

Unlimited cutting and quick change model C U Z forming machine
"Unlimited cutting and quick change model C U Z forming machine" has a broad market, and the products have been sold to Canada, the United States, India and other countries.
"Unlimited cutting and quick change model C U Z forming machine" selected excellent materials, excellent product quality and superb production technology.
"Unlimited cutting and quick change model C U Z forming machine" can automatically control the spacing of horizontal and vertical holes.
The horizontal adjustment range of punching spacing of "Unlimited cutting and quick change model C U Z forming machine" is 40mm —300mm
"Unlimited cutting and quick change model C U Z forming machine" broke the traditional way of loosening bolts and replacing bushings, and adopted the way of moving to the left.
Technical parameters of Unlimited cutting and quick change model C U Z forming machine
| step of rollers | 9-20 steps |
| material of roller shafts | 45# forged steel, with hard chrome plating |
| shear material | Cr12 high strength steel with quenching |
| main frame | 250/300H steel |
| shaft diameter | 70mm |
| medium plate thickness | 14mm |
| main motor power | 3-8 kw |
| power supply | 380v,3 phase,60hz |
| control systerm | PLC computer control with inverter |
| overal size | 3800x1000x1000mm-11000x1000x1000mm |
| processing speed | 8-14m/min |
| warranty period | 2 year |
