| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin33 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Main Frame:: | 300H Steel | Production Capacity:: | 15-25M/min |
|---|---|---|---|
| Core Components:: | PLC, Engine, Bearing, Gearbox, Motor, Pump | Thickness Of Coil Sheet:: | 1-3mm |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Main Motor Power:: | 22kw | Cutting Blade Material:: | Cr12Mov |
| Diameter Of Shaft:: | 70 Mm | Weight:: | 15-25M/min |
| Highlight: | CZ80 Purlin Roll Forming Machine,300H Steel Purlin Roll Forming Machine,cz purlin roll forming machine |
||

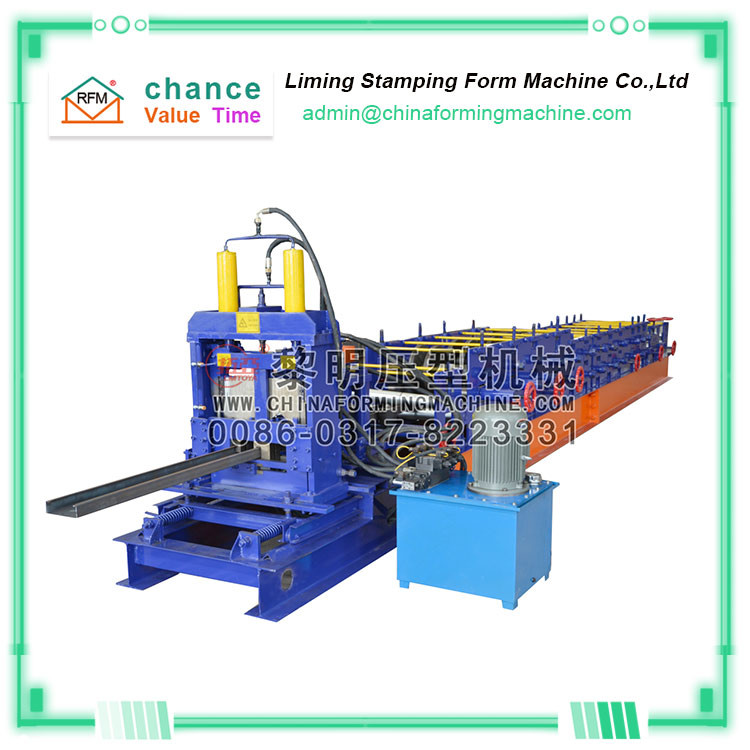

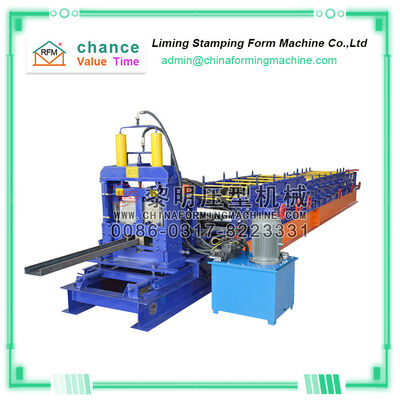

CZ80/120-300 Interchange Purlins Roll Forming Machine For Building Materials
In China, the "CZ80/120-300 interchange purlins roll forming machine for building materials " has undergone many changes, from being unable to change specifications and models to changing specifications and models. Later, many methods were used to replace the mold model
Our professional engineers will select the appropriate specifications and high-quality parameters for the "CZ80/120-300 interchange purlins roll forming machine for building materials ", so that the machine can run well and extend its service life.
"CZ80/120-300 interchange purlins roll forming machine for building materials ", one machine can produce c pur and z pur at the same time.
"CZ80/120-300 interchange purlins roll forming machine for building materials " can automatically change the size, PLC control, and easy to operate.
Technical parameters of CZ80/120-300 Interchange Purlins Roll Forming Machine For Building Materials
| Roll Forming Machine Specs | |
| Guiding Rollers | Two units 45# forging steel with treatment |
| Leveling Rollers | Up 2 down 3, 45# forging steel with treatment |
| Roller station | 13 forming units |
| Under Frame | 350H-beam, Welded structure |
| Sidewall Thickness | 18mm 45# Steel Plate |
| Sidewall Connect Bar | 25mm |
| Shaft diameter(Solid) | 70mm-0.01~-0.03(with key-way) |
| Shaft material(Hard) | High grade 45# steel,heated and quenched cylindrical grinding, |
| Roller material(Hard) | High grade GCr15 bearing steel,heated and quenched |
| Roller Surface | hard chrome coated 0.05mm |
| Bearing Type | Standard 6210 |
| Screw&Bolt | Self-made |
| Transmission Chain | 1.5 inch(Jindun,Hangzhou) |
| Motor Power | 11 KW(Lichao,Shanghai) |
| Forming Speed | 12-15m/min |
| Hydraulic Punching Device | |
| Hole size | 15mm |
| Hydraulic Cutting Device Specs | |
| Main Structure | Welded Structural Steel |
| Steel Plate | 18mm A3 Steel |
| Cutting type | Hydraulic Operation,Stop to post and post to cut |
| Cylinder Quantity | One unit |
| Pump power | 5.5KW,25 Mpa Hydraulic Pressure |
| Cutting die | Cr12Mov, Quenched processed |
| Automatic Computer Control System | |
| Length tolerance | 10m+/-1.5mm |
| PLC System | Delta PLC Program |
| Length Controller | Omron,Japan |
| Operation | Touch-Win Screen,Jiangsu |
| Inverter | Delta,Taiwan |
| Voltage Standard | 220V/3Phases/60Hz |
| 3 Ton Manual Uncoiler | |
| Link-connect expanding system | |
| Coil Inner-diameter | 480-510mm |
| Coil Outer-diameter | Max. 1000mm |
| Load Capacity | Max. 3 Tons |
| Coil Width | Max. 650mm |
