| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin34 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Production Capacity:: | 15-25M/min |
|---|---|---|---|
| Core Components:: | PLC, Engine, Bearing, Gearbox, Motor, Pump | Thickness: | 1.5-3.0mm |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Usage:: | Beam And Support In Steel Construction | Cutting Blade Material:: | Cr12Mov |
| Diameter Of Shaft:: | 70 Mm | Weight:: | 15-25M/min |

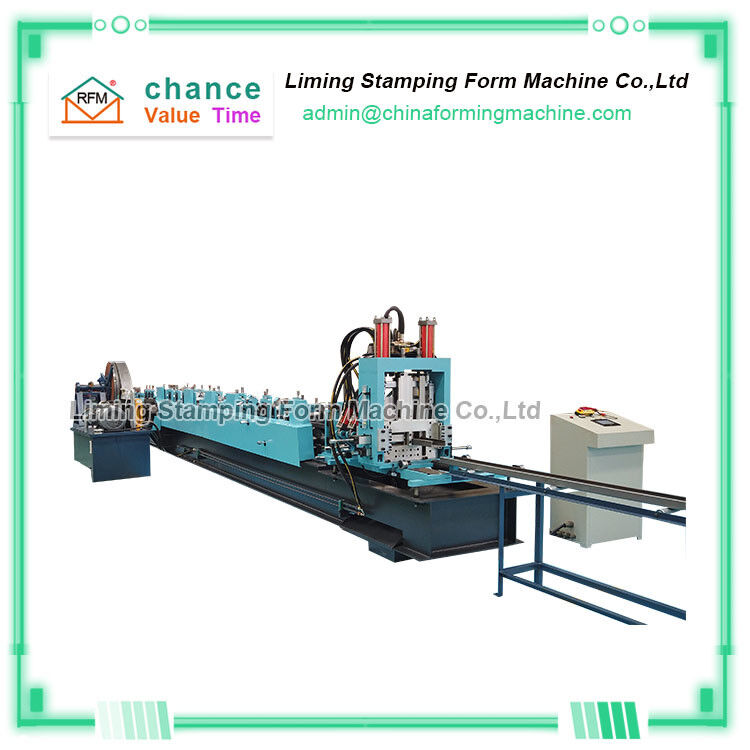

| Highlight: | 22kw C Purlin Forming Machine,LIMING Z Purlin Machine,LIMING C Purlin Forming Machine |
||
New Style C Z Interchangeable Metal Steel Purlin Production Line
"New Style C Z Interchangeable Metal Steel Purlin Production Line" adopts advanced transmission system and overall design.
The "New Style C Z Interchangeable Metal Steel Purlin Production Line" integrates the hydraulic system and the electric motor into the main machine, which saves the equipment's floor space to the greatest extent and improves the convenience and safety of the equipment.
The electrical components of the "New Style C Z Interchangeable Metal Steel Purlin Production Line" are all internationally renowned brands to ensure good working performance of the equipment.
The "New Style C Z Interchangeable Metal Steel Purlin Production Line" introduces the most advanced technology from Finland, and uses the most professional design software COPRA to customize machines that meet European standards.
Technical parameters of New Style C Z Interchangeable Metal Steel Purlin Production Line
| Profile | Web | Flange | Lip | Thickness |
| C | 80-300mm | 40-80mm | 10-25mm | 1.2-3.2mm |
| Z | 120-300mm | 40-80mm | 10-25mm | 1.2-3.2mm |
| main motor power | 22kw+5.5 reducer | |||
| control system | PLC+Drive | |||
| shaping speed | 30 meters/minute highspeed | |||
| size | 10200x1350x1750mm | |||
| material quality | 1.5~3.0mm |
