| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin35 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Production Capacity:: | 15-25M/min |
|---|---|---|---|
| Core Components:: | PLC, Engine, Bearing, Gearbox, Motor, Pump | Thickness: | 1.5-3.0mm |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Usage:: | Beam And Support In Steel Construction | Raw Material:: | Steel |
| Rollers' Material:: | 45#Steel | Weight:: | 14000kg |
| Highlight: | W300mm Purlin Roll Forming Machine,14000kg Purlin Roll Forming Machine,W300mm cz purlin machine |
||

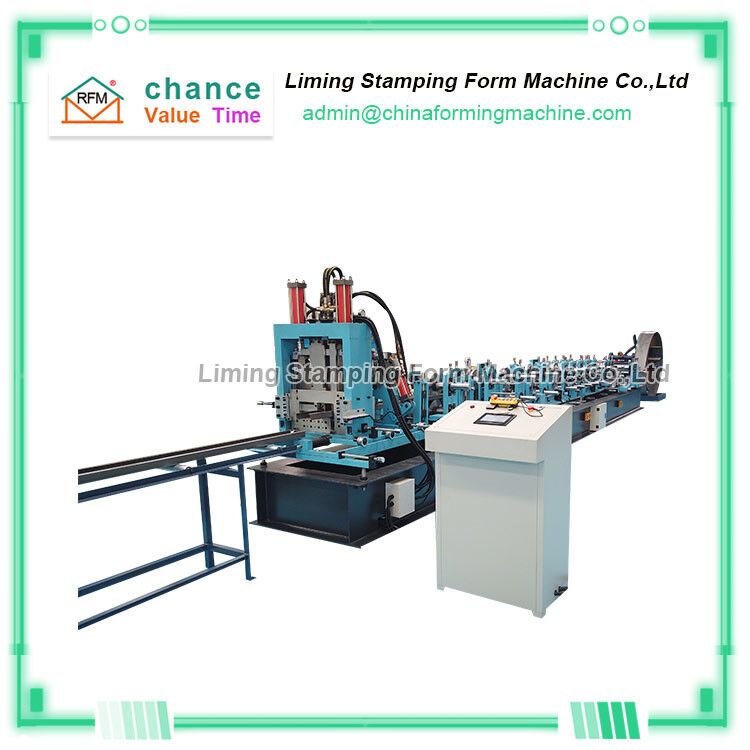

Full Automatic 80-300mm Width And Height Interchangeable CZ Purlin Roll Forming Machine
"Full automatic 80-300mm Width and height Interchangeable CZ Purlin Roll Forming Machine " adopts secondary molding to ensure that the product is square and right-angled, and can be made into larger sizes;
"Full automatic 80-300mm Width and height Interchangeable CZ Purlin Roll Forming Machine " , the thickness of the rolled material is 1.5mm-3mm (the thickness can also be designed according to user requirements);
"Full automatic 80-300mm Width and height Interchangeable CZ Purlin Roll Forming Machine " has a width of 80mm-300mm;
"Full automatic 80-300mm Width and height Interchangeable CZ Purlin Roll Forming Machine " adopts a new type of butt adjustment steel sleeve, which is simple, fast and firm to use.
"Full automatic 80-300mm Width and height Interchangeable CZ Purlin Roll Forming Machine " has the advantages of fast adjustment speed, fast punching and fast cutting.
Technical parameters of Full Automatic 80-300mm Width And Height Interchangeable CZ Purlin Roll Forming Machine
| Full automatic 80-300mm Width and height Interchangeable CZ Purlin Roll Forming Machine | |||
| Voltage | 380/50/3 | V/HZ/PHASE | |
| Power | Hydraulic power | 5.5 | Kw |
| Main motor power | 15 | Kw | |
| Thickness | 1.5-3 | mm | |
| Roll Forming Machine | Shaft | 80 | mm |
| Shaft material | 45# steel | steel | |
| Full automatic 80-300mm Width and height Interchangeable CZ Purlin Roll Forming Machine | |||
| No. | Name | Unit | Qty |
| 1 | Decoiler | set | 1 |
| 2 | Entry Beach | set | 1 |
| 3 | Main Machine for roll forming | set | 1 |
| 4 | Cutting System | set | 1 |
| 5 | punching | set | 1 |
| 6 | Output Table | set | 1 |
| 7 | Control System(PLC) | set | 1 |
| 8 | hydraulic station | set | 1 |
