| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin37 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type:: | Steel Frame & Purlin Machine | Production Capacity:: | 15-25M/min |
|---|---|---|---|
| Applicable Industries:: | Manufacturing Plant | Thickness: | 1.5-3.0mm |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Usage:: | Beam And Support In Steel Construction | Work Pressure:: | Normal Pressures |
| Rollers' Material:: | 45#Steel | Weight:: | 14000kg |
| Highlight: | 25M/Min Cz Purlin Machine,14 Rows Cold Bending Machine,25M/Min Cold Bending Machine |
||

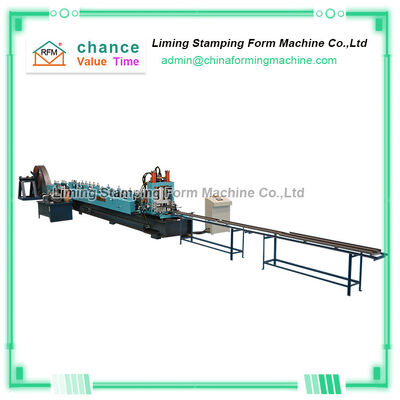

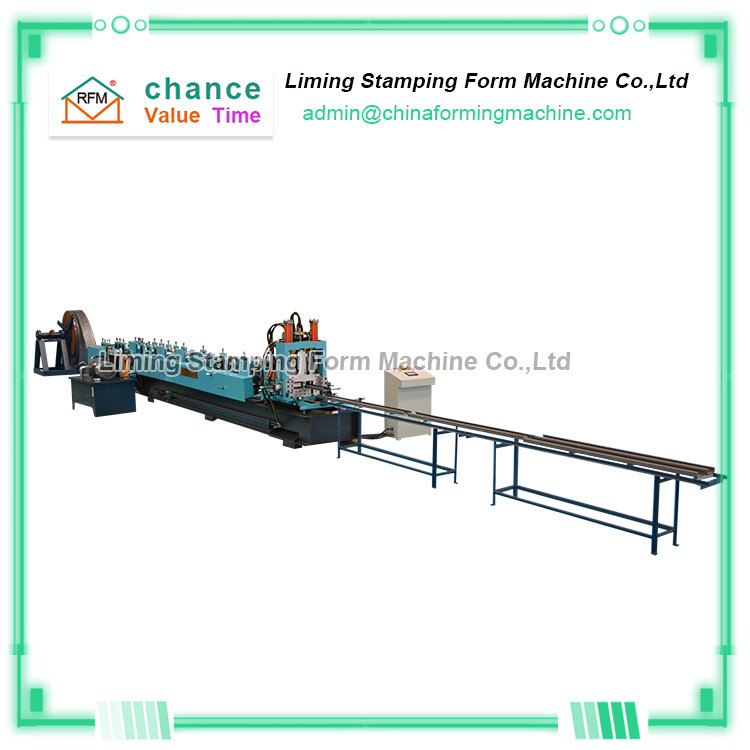

Quick Interchangeable 80-300mm C Z Purlin Roll Forming Machine
1."Quick interchangeable 80-300mm c z purlin roll forming machine " is a modular component, neat, beautiful, generous, can be easily disassembled, modified or adjusted, and can be used continuously to avoid wasting resources.
"Quick interchangeable 80-300mm c z purlin roll forming machine " produced C-shaped steel is reliable and stable under the action of force, accurate positioning, impact and earthquake resistance.
3. "Quick interchangeable 80-300mm c z purlin roll forming machine " has long service life and simple maintenance. Customers can choose whether to galvanize or not according to the special needs of the use environment.
4. Compared with the "steel of the same strength", the C-shaped steel produced by the "Quick interchangeable 80-300mm c z purlin roll forming machine " saves 30% of metal materials, saving costs and funds.
5. "Quick interchangeable 80-300mm c z purlin roll forming machine " meets ICE and ISO standards, thus ensuring product integrity and product stability.
Technical parameters of Quick Interchangeable 80-300mm C Z Purlin Roll Forming Machine
(1) Suitable material:steel
(2) Thickness of the plate1.5-3.0mm
(3) Input width of the plate:80-300mm
(4) Width of the plate after forming: 80-300mm
(5) Productivity :0-25m/min
(6) Roller steps:14 rows
(7) Roller material:45#steel Rolling chromiumthickness:0.05mm
(8) Diameter of active shaft: 90-120mm
(9) Wall thickness of the mainforming machine:20mm steel plate
(10) Main forming machine body :350mmH steel
(11) Transmission chain is 2 inches
Reducer is 11kw which works stably and no noise
(12) Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 5.5kw, no noise, work stably, long life expentancy.
(13) PLC control systerm, easy to operate, high precision and work stably.
(14) Dimensions of major structure:8500mm*1600mm*1200mm
