| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin40 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type:: | Steel Frame & Purlin Machine | Voltage: | 380V 50HZ 3Phase |
|---|---|---|---|
| Applicable Industries:: | Manufacturing Plant | Production Capacity:: | 10-15m/min |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Power:: | 15kw | Shaft Material:: | 45# High Grade Steel |
| Pump Station:: | 5.5kw | Forming Stations:: | 15 |
| Highlight: | C Profile Purlin Roll Forming Machine,Steel Frame Purlin Roll Forming Machine,Q235 C Profile Roll Forming Machine |
||

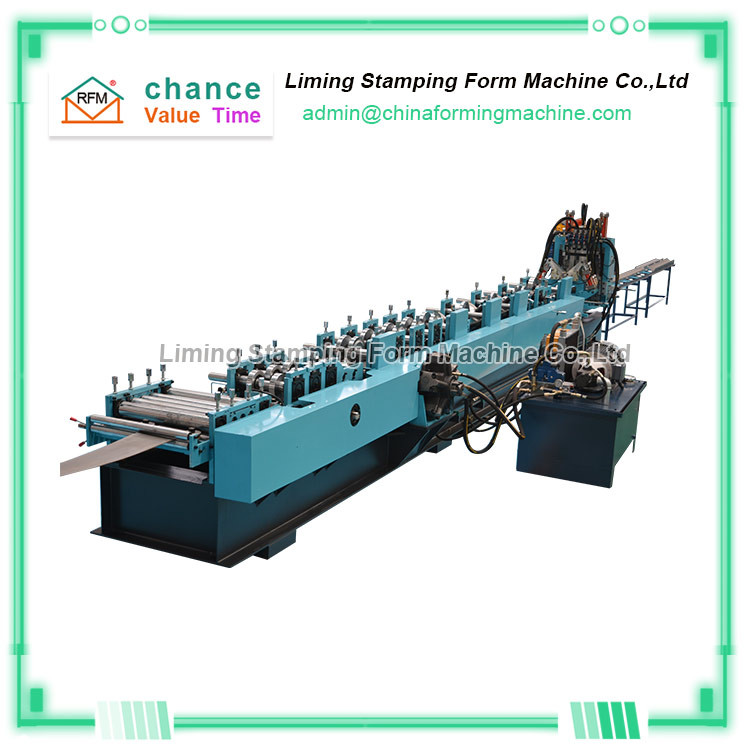

Automatic C Profile Steel Roll Forming Machine For Making Steel C Purlin Channel
"Automatic c profile steel roll forming machine for making steel c purlin channel" is a new type of CZ-shaped steel profile forming equipment.
"Automatic c profile steel roll forming machine for making steel c purlin channel" adopts CZ integrated production method, which can adjust the profile size and model required by customers, as well as the processing and production of plates of different thicknesses.
"Automatic c profile steel roll forming machine for making steel c purlin channel" adopts a fully automatic computer-controlled machine to run, roll forming automatically through the pressing wheel, and automatically punch after forming.
When the profile reaches the specified length, the "Automatic c profile steel roll forming machine for making steel c purlin channel" , the machine will automatically cut it off. Cutting adopts a non-polar cutting method. The cutting blade is made of Cr12mov, and the blade has high wear resistance. lasting.
Technical parameters of Automatic C Profile Steel Roll Forming Machine For Making Steel C Purlin Channel
| Item | Parameters | ||
| Profile | C & Z purlin | ||
| Material | Type | Q345-Q235 Galvanized Sheet | |
| Thickness(mm) | Yield strength: 230-300 (Mpa) | 1.6-3.2 | |
| Yield strength: 300-350 (Mpa) | 1.6-2.6 | ||
| Max. forming speed (m/min) | 30 | ||
| Roller material | GCr15/Cr12/D2 | ||
| Roller driven type | Hydraulic or motor | ||
| Controller | CNC or Windows2000/PLC | ||
