| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin12-4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 45set/Year |
| Production Product Specifications:Production Product Specifications: | C Width (80-300mm), | Weight: | 6T |
|---|---|---|---|
| Motor Power: | 22kw | Thickness: | 1.5-3.0mm |
| Forming Passes: | 18 Passes | Certification: | CE、BV、ISO |
| Feed Material: | Q195/Q235 Hot Rolled Strip Steel | Material: | 45# |
| Dimension(L*W*H): | 5000*1000*1000mm | Weight:: | 14000kg |
| Highlight: | gr12 roller purlin roll forming machine,roof decoration z purlin machine,automatic c purlin roll forming machine |
||

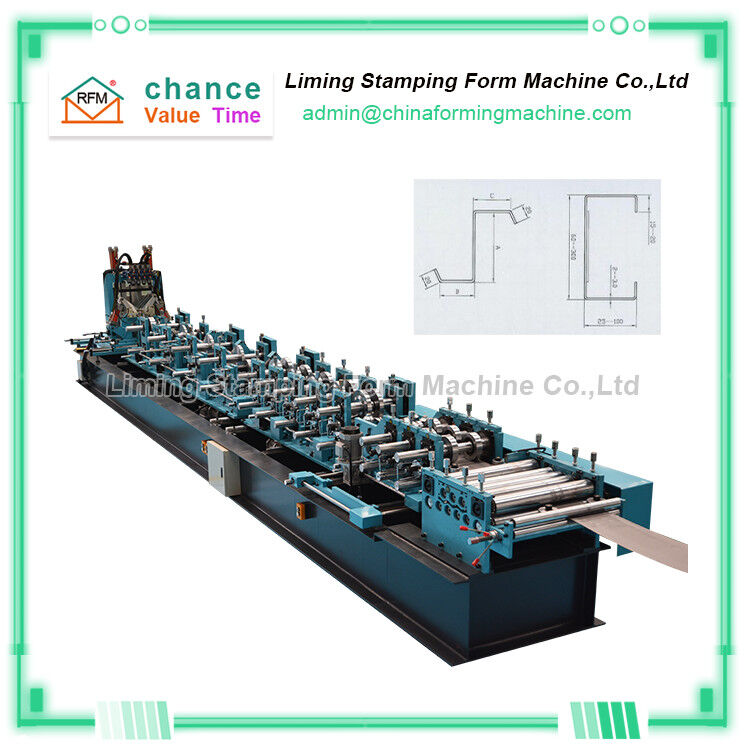

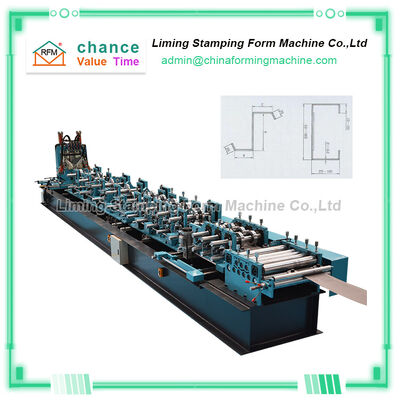

Gr12 Roller Kun Automatic Purlin Forming Machine For Roof Decoration Cz Purlin Forming Machine
The purlin forming machine can be used to produce equipment that can be used to produce C-type purlins and Z-type purlins. This equipment can produce C-type purlins and Z-type purlins of different models and thicknesses, and the purlin forming machine is also equipped with online punching Hole device can help you punch different holes to help you install. At the same time, the CZ shape interchange unit and size change unit of the purlin forming machine are controlled by PLC, and can be changed through the settings on the touch screen, which can help you save labor costs and bring you considerable benefits.
Technical parameters of Gr12 Roller Kun Automatic Purlin Forming Machine For Roof Decoration Cz Purlin Forming Machine
| Raw Material | Type | Galvanized Sheet, Black Sheet |
| Thickness | 1.5-3.0mm | |
| C Purlin Size | Web x Flange x Lip | 80-300/ 30-80/ 10-20 |
| Z Purlin Size | Web x Flange x Lip | 120-300/ 30-80/ 10-20 |
| Speed | Max. 30m/min (by servo motor driven) | |
| Performance | C & Z Interchange | PLC Control, Fully Automatic |
| Size Change | PLC Control, Fully Automatic | |
| Uncoiler | Type | Mechanical or Hydraulic |
| Capacity | 6 T | |
| Main Roller Station | 18 | |
| Main Machine | Main Drive | Hydraulic Motor or Servo Motor |
| Transmission Type | Chain | |
| Punching Location | Web + Flange | |
| Punching & Cutting | Punching Unit | 5Sets |
| Cutter Type | Universal Cutter |
Production process of purlin forming machine
Uncoiling-leveling and feeding-forming unit cold rolling forming-punching mounting holes-fixed length cutting-finished product receiving
Details of the main machine of the purlin forming machine
Simulation diagram of purlin forming machine
