| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-purlin12-5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 45set/Year |
| Production Product Specifications:Production Product Specifications: | C Width (80-300mm), | Weight: | 6T |
|---|---|---|---|
| Motor Power: | 22kw | Thickness: | 1.5-3.0mm |
| Forming Passes: | 18 Passes | Certification: | CE、BV、ISO |
| Feed Material: | Q195/Q235 Hot Rolled Strip Steel | Material: | 45# |
| Dimension(L*W*H): | 5000*1000*1000mm | Weight:: | 14000kg |
| Highlight: | liming cz purlin roll forming machine,1.5mm cz purlin roll forming machine,house construction cz purlin machine |
||

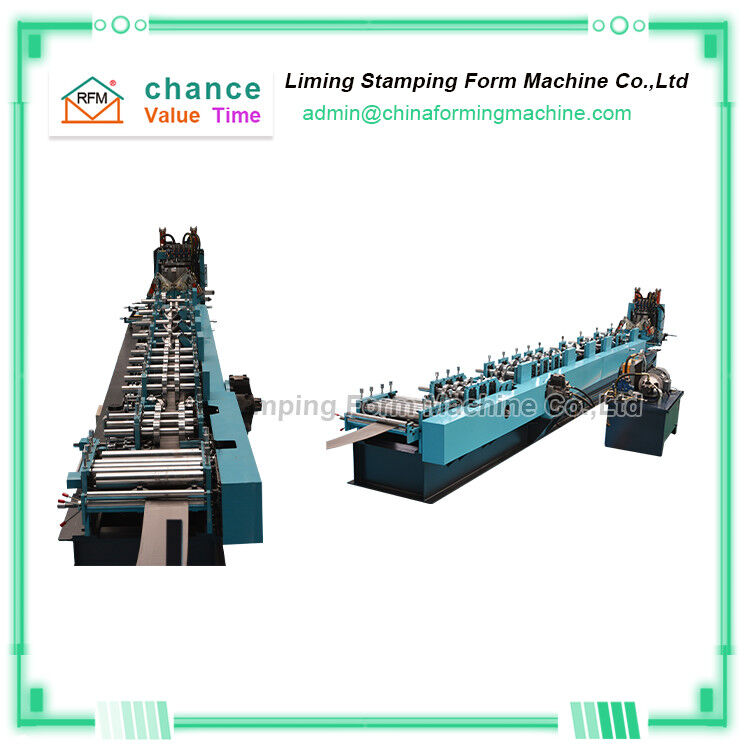

The purlin roll forming machine for house construction can produce CZ purlin forming machines with different types of C and Z profiles
Liming Pressing Machinery Co., Ltd. is a company that designs, develops, sells, and cold-formed equipment. Liming has 25 years of experience in the design and production of CZ purlin forming machines, which can fully satisfy customers’ demands for CZ purlin forming machines. The need for precision and efficient production.
Technical parameters of The purlin roll forming machine for house construction can produce CZ purlin forming machines with different types of C and Z profiles
| Raw Material | Type | Galvanized Sheet, Black Sheet |
| Thickness | 1.5-3.0mm | |
| C Purlin Size | Web x Flange x Lip | 80-300/ 30-80/ 10-20 |
| Z Purlin Size | Web x Flange x Lip | 120-300/ 30-80/ 10-20 |
| Speed | Max. 30m/min (by servo motor driven) | |
| Performance | C & Z Interchange | PLC Control, Fully Automatic |
| Size Change | PLC Control, Fully Automatic | |
| Uncoiler | Type | Mechanical or Hydraulic |
| Capacity | 6 T | |
| Main Roller Station | 18 | |
| Main Machine | Main Drive | Hydraulic Motor or Servo Motor |
| Transmission Type | Chain | |
| Punching Location | Web + Flange | |
| Punching & Cutting | Punching Unit | 5Sets |
| Cutter Type | Universal Cutter |
Process flow of CZ purlin forming machine
Place the raw materials-raw material uncoiling-feed flattening-cold-rolled forming-mounting holes on both sides-fixed length cutting-finished product receiving
Advantages of CZ purlin forming machine
1. The CZ purlin forming machine can produce C-shaped steel and Z-shaped models, which can help you save space and save manpower and equipment purchase costs.
2. CZ purlin forming machine supports and adjusts the type of profile produced, which can help you realize the production of profiles of different sizes
3. The punching position of the punching device of the CZ purlin forming machine can be adjusted freely according to your needs
4. The cutting device of CZ purlin forming machine, we use an adjustable stepless cutting device, which can be cut at will according to the type and size of the material you produce.
