| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-floor22 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Cutting System:: | Automatic Hydyaulic Cutting | Forming Stations:: | 23 Steps |
|---|---|---|---|
| Suitable Material:: | Galvanized Steel, GI | Forming Speed:: | 10-15m/min |
| Power: | 3KW | Color:: | Client's Request |
| Material Thickness:: | 0.5-1.2mm | Advantage: | High Efficent |
| Shaft Diameter:: | 75mm And 95mm | Driving Motor:: | 15Kw |
| Highlight: | 23 Steps Floor Deck Roll Forming Machine,3KW Floor Deck Roll Forming Machine |
||

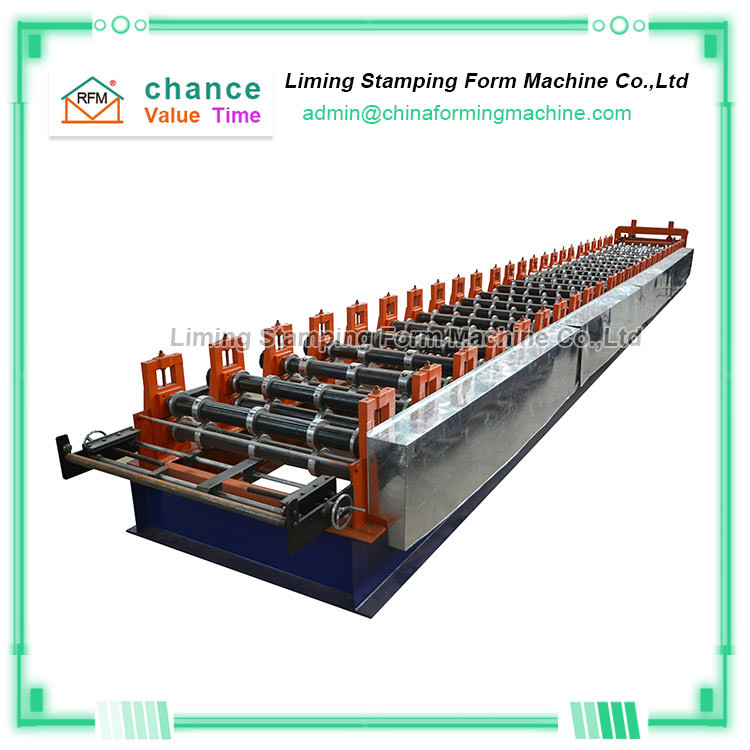

Construction Material Floor Deck Roll Forming Machine
"Construction material floor deck roll forming machine" is fully automatic computer control, automatic processing and production.
The floor deck produced by the "construction material floor deck roll forming machine" has a width of 1250mm before processing and a width of 915mm after forming. After formation, there are three tile peaks. The distance between the tile peaks is 305mm, and the height of the tile peaks is 76mm. The surface of the plate is pressed with concavo-convex stiffeners, so that the plate has a good bearing capacity.
Features of "construction material floor deck roll forming machine": Our company has strict requirements for production. The machine roll mold is processed independently. The company's machining department has strict quality inspection and management personnel;
The "construction material floor deck roll forming machine" is assembled by assemblers after marking, leveling and measuring. After assembling the "Building Material Floor Forming Machine", it has been tested several times to make sure that the equipment has no problems, and then it is ready for shipment.
The "construction material floor deck roll forming machine" meets the requirements of rapid construction of the main steel structure, can provide a solid working platform in a short time, and can use multiple floor decks to lay special-shaped steel plates and layer by layer concrete slab construction.
Main parameters of Construction Material Floor Deck Roll Forming Machine
| 1 | Material of input sheet | Galvanized steel/ colored steel |
| 2 | Feeding width | 1250MM |
| 3 | Effective width | 915MM |
| 4 | Material thickness | 0.3-1.5mm |
| 5 | Main motor power | 11kw |
| 6 | Hydraulic pump power | 7.5kw |
| 7 | Forming step | 16 steps |
| 8 | Diameter of shaft | 75mm |
| 9 | Main frame | 350H steel |
| 10 | Roller material | 45# steel with chrome |
| 11 | Cutting knives material | Cr12 |
| 12 | Machine size | 9.6*1.2*1.5m |
| 13 | Machine weight | about 8.0-10.0 tons |
