| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-floor15 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Material Of Rollers:: | 45# Steel, Quenched HRC 58-62 | Forming Stations:: | 28 Stations |
|---|---|---|---|
| Power:: | 22kw | Forming Speed:: | 8-20m/min |
| Dimension(L*W*H):: | 13000mm*1600mm*1200mm | Voltage: | 380V 50Hz 3Phases |
| Material Thickness:: | 0.3-1.0mm | Feeding Width:: | 1220mm |
| Certification:: | CE/ISO | Length And Length Accuracy:: | ± 2mm |
| Highlight: | three phase floor deck forming machine,22kw floor deck forming machine,28 stations floor deck forming machine |
||

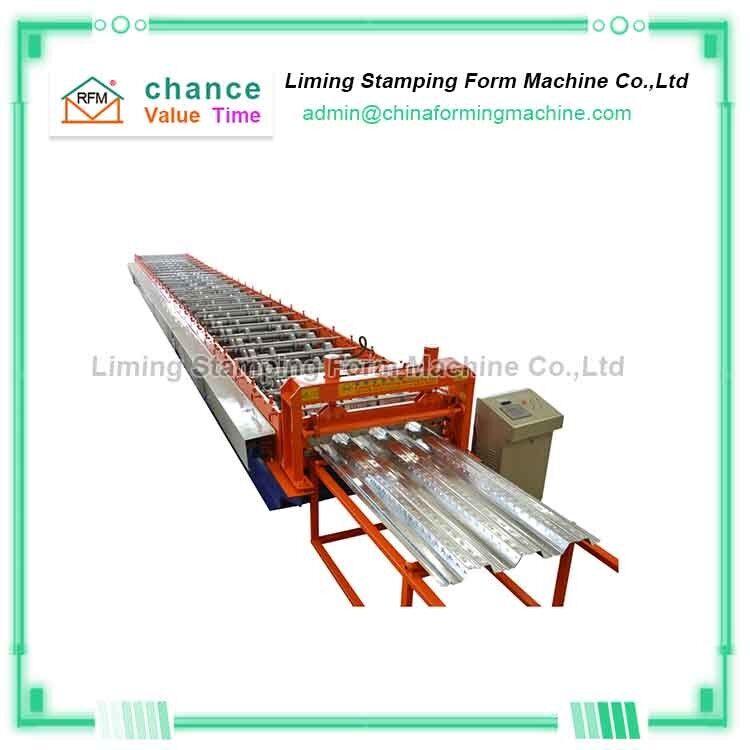

Floor deck forming machine is used to produce floor deck equipment.
The steel floor deck produced by the floor deck forming machine has a simple shape, large waviness, and high strength. It is installed with welded steel mesh and combined with concrete pouring. It has good adhesion. It can omit steel formwork in high-rise buildings. It can also reduce fatigue load, achieve the same bearing capacity, reduce the amount of steel used in engineering, and save investment.
The floor deck forming machine has the advantages of beautiful and practical, reasonable overall design, convenient operation, convenient construction, and short construction period, which can help you save operating procedures and labor costs
The products produced by the floor deck forming machine have the characteristics of light weight, high strength, heavy bearing capacity and good seismic resistance. The floor deck forming machine products are widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops, cement warehouses, and steel Structural offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues, stadiums and other steel structure buildings.
Main parameters ofProject contracting, fast construction, easy to install, deck floor roll forming machine
| The total length of theequipment | Length 13m width 1.6m height 1.2m |
| Equipment weight | 14T |
| Version to width | Effective width 915 spread width 1.25 m peak height 76 peak spacing 305 |
| Retarding mechanism | Planetary cycloid reducer.11 kw + 11 kw |
| The transmission way | 2 inch chain drive |
| Shaft diameter material | Nancial shaft 100 solid shaft material 45# steel hb220-250, 6214 bearing inner hole nancial 70 |
| Roller way | 26 |
| Material and treatment | The pressing wheel is a steel finishing car with G chromium 15 bearing. The polished hard chromium plating is 0.05mm. There is no loose clearance between the shaft and the hole.Wall board thickness 18mm. Big frame: 400 i-beam steel |
| Hydraulic power | 7.5KW |
| Cut off the way | Hydraulic cutting power 7.5kw, 125 oil cylinder two, blade Cr12 quenching, Rc62, no flash. |
| The molding part | Precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient and fast, can maximize the control of deviation |
| The thickness of the plate | 0.8~1.5mm |
| Platen speed | 8-12m/min |
| Control system | CNC system, main motor, Taiwan delta inverter a, an electrical cabinet. |
| Manufacturers to provide | 1 manual, send technicians to debug the equipment |
| Warranty period | 12 months |
