| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-floor14 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Material Of Rollers:: | 45# Steel, Quenched HRC 58-62 | Forming Stations:: | 28 Stations |
|---|---|---|---|
| Power:: | 22kw | Forming Speed:: | 8-20m/min |
| Dimension(L*W*H):: | 8700*2230*1330mm | Voltage: | 380V 50Hz 3Phases |
| Material Thickness:: | 0.4-1.5mm | Feeding Width:: | 1220mm |
| Passive Discharge Bearing:: | 10T | Length And Length Accuracy:: | ± 2mm |
| Highlight: | plc floor deck roll forming machine,1.5mm floor deck roll forming machine,20m/min floor deck roll forming machine |
||
In engineering construction, the deck floor is widely used in steel structure buildings such as power plants, power equipment companies, automobile exhibition halls, steel structure workshops, Olympic stadiums and gymnasiums by virtue of its own, strong load-bearing capacity and corrosion resistance. If you produce deck floors, we can provide you with deck floor forming machines

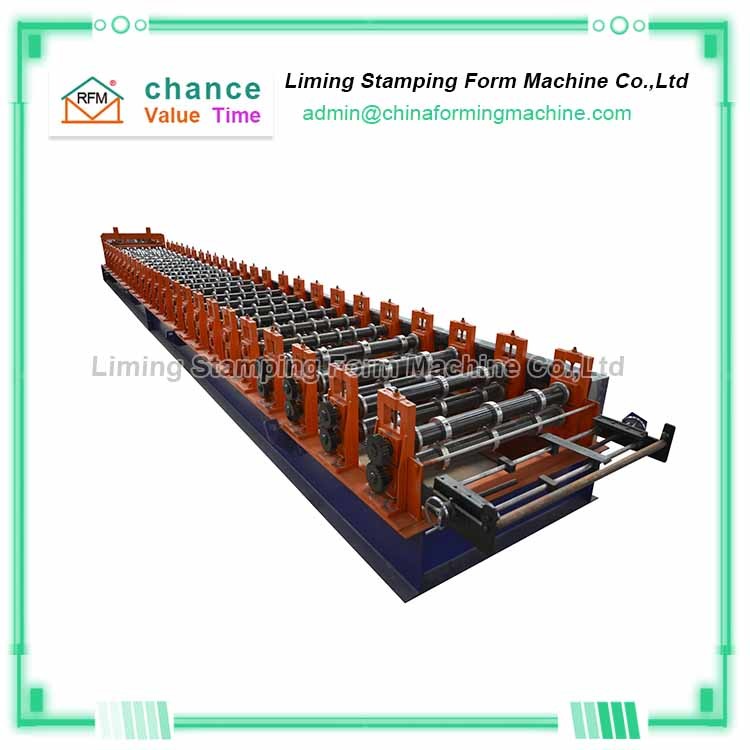

The deck floor roll forming machine developed by our company is composed of an uncoiling device, a feeding device, a forming host, a shearing device, and a receiving device. The whole machine is controlled by a PLC electronic control system. The operation is simple and easy to operate, so it can help you reduce the number of people. Costs and production processes are reduced.
The deck floor roll forming machine adopts an integrated casting middle plate, so that the machine has a stronger pressure bearing capacity and better stability. The product produced has a complete pattern and no burrs, and can be directly installed and used.
At the same time, the deck floor roll forming machine is also equipped with a bump forming device, which makes the floor deck and concrete better contact and also facilitates the installation of the floor deck.
Main parameters ofProject contracting, fast construction, easy to install, deck floor roll forming machine
| Applicable Industries | Hotels,Garment Shops, Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage |
| Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works,Energy & Mining,Food & Beverage | |
| Shops,Advertising Company | |
| Tile Type | Steel Colored Glazed Colored Steel Colored Glaze Colored Glaze Steel Glazed Steel |
| productivity | 60m/min 40m/min 20m/min Others |
| Voltage | 220 V,380 V,415 V,440 V,Others |
| Dimension(L*W*H) | 20*2*2 Others |
| Weight | 9800 KGS Others |
| Features | Fastest speed/Remote Production Control/Best solution/Best components/Easy installation/Easy operation/Mini space/Full lifetime service |
| Rolling Thinckness | 0.3-0.8 mm Others |
| Feeding Width | 1250 mm 1219 mm 1000 mm 940 mm 914 mm 600 mm 500 mm 400 mm Other |
| Power | 15 KW Others |
