| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-floor23 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Cutting System:: | Automatic Hydyaulic Cutting | Forming Stations:: | 28 Steps |
|---|---|---|---|
| Suitable Material:: | Galvanized Steel, GI | Forming Speed:: | 10-15m/min |
| Hydraulic Power:: | 4KW 380V 50HZ 3-phase | Color:: | Client's Request |
| Material Thickness:: | 0.7-1.2mm | Advantage: | High Efficent |
| Shaft Diameter:: | 75mm And 95mm | Driving Motor:: | 15Kw |
| Highlight: | 380V Metal Deck Roll Forming Machine,Galvanized Steel Metal Deck Roll Forming Machine |
||

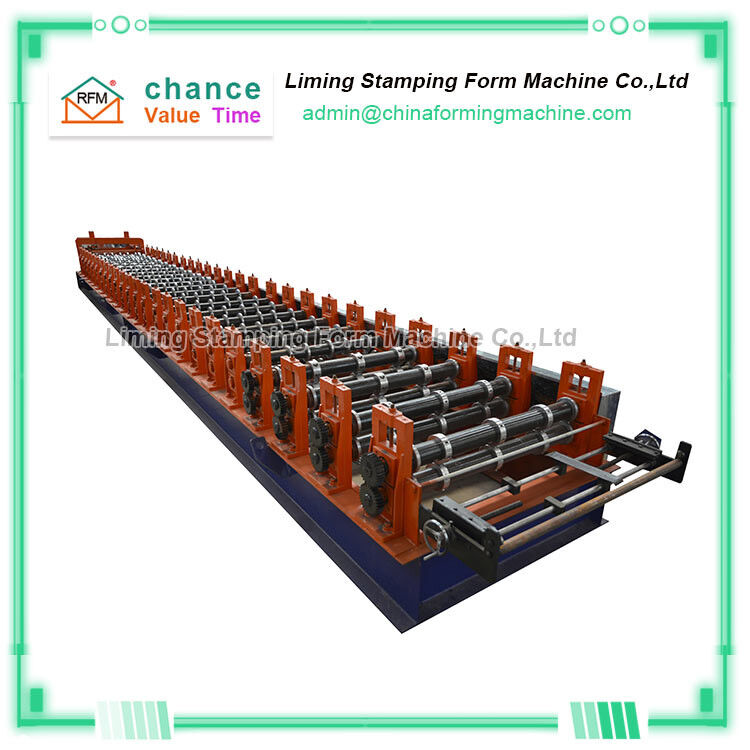

Building Material Floor Deck Roll Forming Machine
"Building material floor deck roll forming machine" adopts arched guide posts to increase the strength of the machine;
The "building material floor deck roll forming machine" is widely used in the plan. The filled floor slab increases the friction between the steel plate and the concrete, thereby improving the fastness of the floor.
The "building material floor deck roll forming machine" produced by our company is mainly used for the production of steel structure engineering floors. Rolled and cold-formed profile steel plates are made of galvanized sheets, and the shape of the rolled floor deck is similar to V-shaped, U-shaped, trapezoidal or a combination of these shapes.
"Building material floor deck roll forming machine" is mainly used as a permanent formwork for composite floors or concrete floors. The product has the characteristics of light weight, high strength, large bearing capacity, and good seismic performance. It is widely used in the field of multi-story and high-rise steel structure buildings.
After assembling the "building material floor deck roll forming machine" , it will be tested several times to ensure that the equipment has no problems and can be shipped.
Main parameters of Building Material Floor Deck Roll Forming Machine
| Roll forming machine name | Building material floor deck roll forming machine |
| Brand of plc | Delta |
| Material of rollers | High grade 45# steel with 0.05mm chormed |
| Material of shafts | Soild high grade 45# steel |
| Diameter of shaft | 90-95mm |
| Material of blade | Cr12 ateel |
| Transmission | double Chains |
| Motor voltage | 380V 50Hz 3P or customized |
| Motor kw | 15kw*2 |
| Cutter system | Automatic Hydraulic cutter system |
| Hydraulic pump kw | 4 kw |
| Machine base frame | 450 H beam welding |
| Raw material | galvanized steel |
| Thickness of raw material | 0.6-1.5mm |
